ON Semiconductor NTLLD4901NFTWG Overview

The ON Semiconductor NTLLD4901NFTWG is a cutting-edge, dual N-Channel Power MOSFET designed to deliver high efficiency and performance for a wide range of applications. This power MOSFET is an ideal choice for compact and power-sensitive designs, thanks to its small footprint and low on-resistance.

Key Features

• Low On-Resistance: The NTLLD4901NFTWG features an incredibly low on-resistance, which translates to reduced conduction losses and improved overall efficiency in electronic circuits.
• Dual N-Channel Configuration: Its dual N-channel configuration enables the design of more compact circuits by integrating two independent MOSFETs into a single package, saving space on the PCB.
• High Power and Current Handling: With the capability to handle high levels of power and current, this MOSFET is suitable for demanding applications that require robust power management.
• Low Threshold Voltage: A low threshold voltage ensures that the device can be easily driven at lower gate voltages, making it compatible with low-voltage logic and reducing power consumption.

Applications

The versatility of the NTLLD4901NFTWG MOSFET makes it an excellent choice for a variety of applications, including but not limited to:

• Power management modules
• DC/DC converters
• Battery-powered devices
• Motor control circuits
• Load switch applications
• Portable electronic devices

Technical Specifications

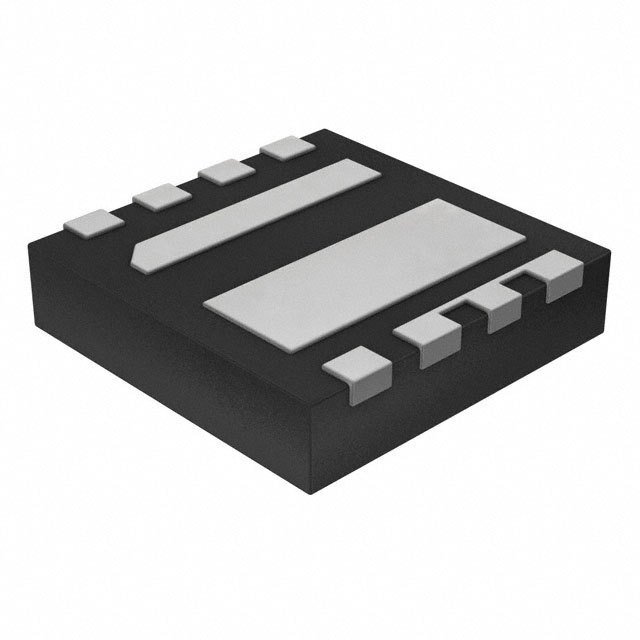

The NTLLD4901NFTWG boasts impressive technical specifications that ensure reliable performance in various electronic designs. It features a continuous drain current (ID) at 25°C of up to 3.6 A, a power dissipation (PD) of 1.25 W, and a maximum operating temperature range from -55°C to 150°C. The device is housed in a compact WDFN6 package, which is optimized for minimal footprint and low thermal resistance.

Whether you're designing power-efficient portable devices or robust power management systems, the ON Semiconductor NTLLD4901NFTWG is a superb choice that offers reliability, efficiency, and space-saving benefits.
