ON Semiconductor NTMFD4C20NT1G Power MOSFET

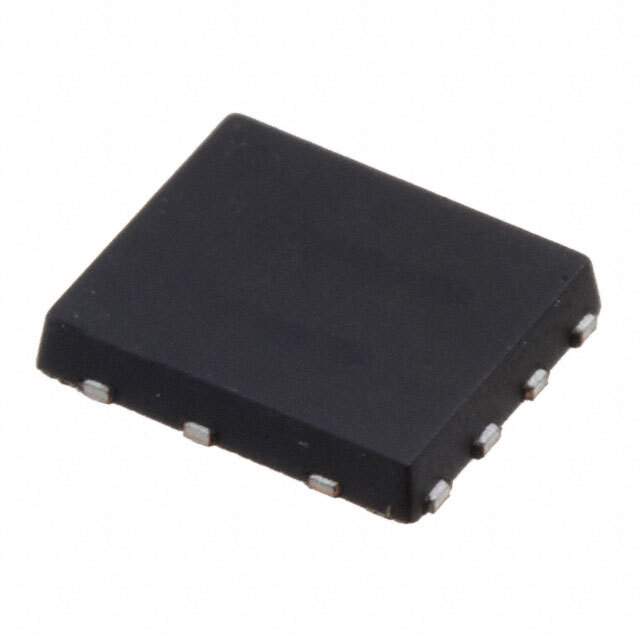

The ON Semiconductor NTMFD4C20NT1G is a high-performance, dual N-channel Power MOSFET designed to deliver efficient power management and conversion for a wide range of applications. This advanced power device is encapsulated in a compact and robust Power 33 DFN package, making it an excellent choice for space-constrained applications where high efficiency is paramount.

Key Features

• Low On-Resistance: The NTMFD4C20NT1G boasts an exceptionally low on-resistance (R<sub>DS(on)), which significantly reduces conduction losses and enhances overall efficiency, making it an ideal solution for high-performance power circuits.
• High Continuous Drain Current: This MOSFET can handle a high continuous drain current (I<sub>D), providing robust power handling capability for demanding applications.
• High Thermal Performance: With an excellent thermal performance, the NTMFD4C20NT1G can operate reliably even under high temperature conditions, ensuring long-term stability and performance.
• Low Gate Charge: The device features a low gate charge (Q<sub>g), which translates to faster switching speeds and reduced switching losses, thus improving the efficiency in high-frequency applications.

Applications

The versatility of the NTMFD4C20NT1G makes it suitable for a diverse array of applications, including:

• DC/DC converters
• Motor drives
• Power supply units
• Battery management systems
• Computing and server systems

Technical Specifications

Some of the technical specifications of the NTMFD4C20NT1G include:

• Voltage Rating (V<sub>DS): 20V
• Continuous Drain Current (I<sub>D @ T<sub>A = 25°C): 48A
• Power Dissipation (P<sub>D): 3.8W
• On-Resistance (R<sub>DS(on)): 1.7 mΩ
• Operating Temperature Range: -55°C to 150°C

With its combination of low on-resistance, high current handling, and efficient switching performance, the NTMFD4C20NT1G from ON Semiconductor is a reliable and effective solution for designers looking to optimize power efficiency in their electronic designs.
