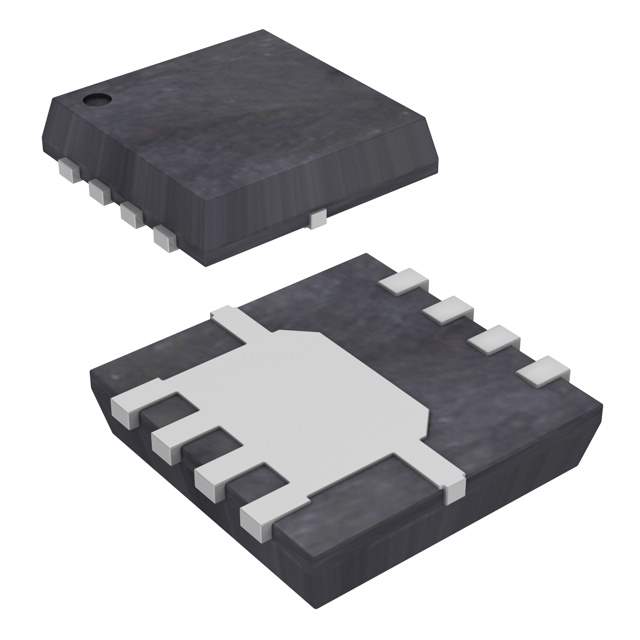

ON Semiconductor NTTFS4C05NTWG Overview

The NTTFS4C05NTWG is a cutting-edge Power MOSFET from ON Semiconductor, designed to deliver high efficiency and performance for a wide range of applications. This product is part of ON Semiconductor's portfolio of energy-efficient devices, which are aimed at reducing power losses and improving system reliability.

Key Features

• Low R<sub>DS(on): The device boasts an ultra-low on-resistance, which translates to reduced conduction losses and enhanced power efficiency in applications.
• High Continuous Drain Current (I<sub>D): With a robust continuous drain current rating, this MOSFET can handle high current applications with ease.
• Single N-Channel: The single N-Channel configuration allows for simple integration into various circuit designs, providing versatility and ease of use.
• High-Temperature Performance: Engineered to operate effectively at high temperatures, this MOSFET maintains its performance under stressful thermal conditions, ensuring reliability.
• Small Footprint: The compact size of the NTTFS4C05NTWG makes it suitable for space-constrained applications without sacrificing power or thermal management.

Applications

The NTTFS4C05NTWG is ideal for a range of applications, including:

• DC/DC Converters
• Power Management Solutions
• Motor Drives
• Computing and Server Power Supplies
• Telecommunication Equipment

Technical Specifications

Some of the key technical specifications of the NTTFS4C05NTWG include:

• Package/Case: SO-8FL
• Mounting Type: Surface Mount
• Drain-to-Source Voltage (V<sub>DSS): 30V
• Continuous Drain Current (I<sub>D): 48A
• Power Dissipation (P<sub>D): 88W
• R<sub>DS(on) Max @ V<sub>GS, I<sub>D: 1.7 mOhm @ 10V, 24A
• Operating Temperature Range: -55°C to 150°C

With its outstanding efficiency, thermal management, and high current handling capabilities, the NTTFS4C05NTWG from ON Semiconductor is an excellent choice for designers looking to optimize their power systems.
