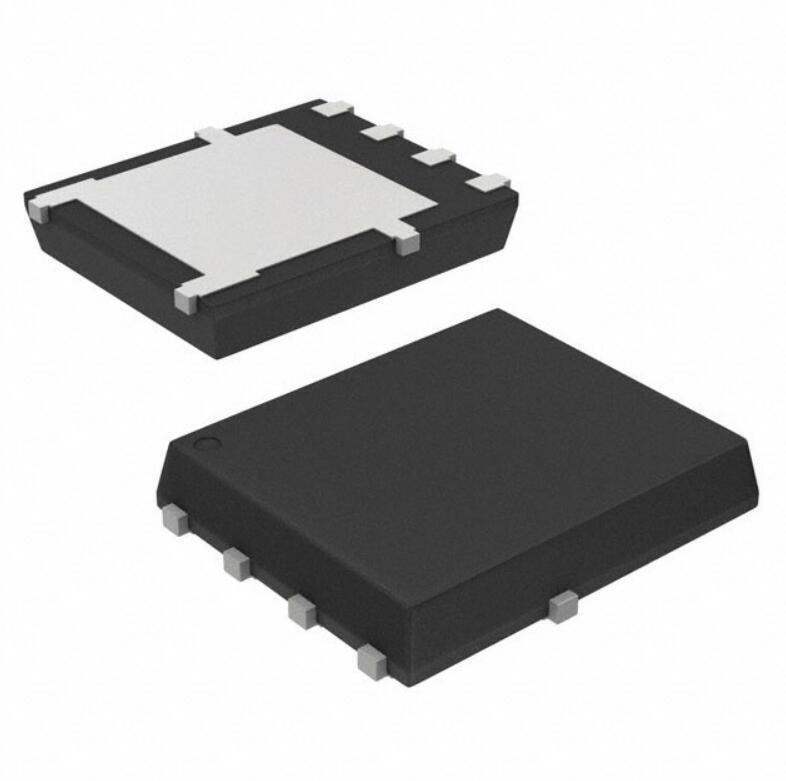

The NVMFS5C682NLWFAFT3G is a state-of-the-art power MOSFET brought to you by ON Semiconductor, a company renowned for its innovative approach to semiconductor technology. This high-performance, single N-channel MOSFET is designed to meet the rigorous demands of modern electronic applications, offering superior power efficiency, reliability, and thermal performance.

Key Features

• Low On-Resistance: With an extremely low on-resistance (R<sub>DS(on)), this MOSFET minimizes conduction losses, making it ideal for high-efficiency power management applications.
• High Current Capability: The NVMFS5C682NLWFAFT3G supports a continuous drain current (I<sub>D), providing robust power handling for demanding circuits.
• Enhanced Power Density: Its compact footprint and power density make it suitable for space-constrained applications without compromising performance.
• Thermal Management: The MOSFET's low thermal resistance ensures effective heat dissipation, contributing to a longer operational lifespan and stable performance.
• Robust Design: Engineered with ON Semiconductor's advanced technology, this device offers high durability and resistance to harsh conditions, making it suitable for automotive and industrial applications.

Applications

The NVMFS5C682NLWFAFT3G is versatile and can be used in a variety of applications, including:

• DC/DC converters
• Power supply modules
• Motor drives
• Automotive systems
• Switching regulators

Technical Specifications

Parameter Value Drain-to-Source Voltage (V<sub>DSS) 68 V Continuous Drain Current (I<sub>D) 220 A Power Dissipation (P<sub>D) 3.8 W Operating Temperature Range -55°C to +150°C Package 5x6mm PDFN

With its robust design and impressive electrical characteristics, the ON Semiconductor NVMFS5C682NLWFAFT3G MOSFET is an excellent choice for designers looking to enhance the efficiency and reliability of their power management systems.
