Same model may have multiple batches, images only for reference.

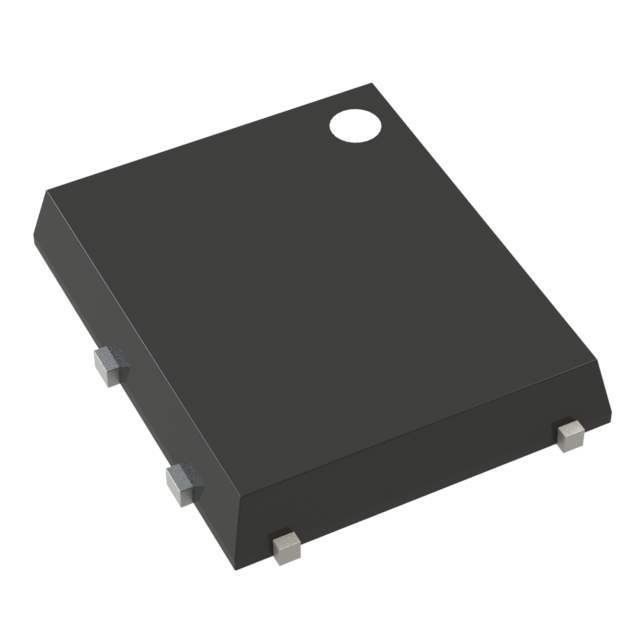

NVMFWS0D4N04XMT1G onsemi
Same model may have multiple batches, images only for reference.

NVMFWS0D4N04XMT1G

Part No NVMFWS0D4N04XMT1G
Manufacturer ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description 40V T10M IN S08FL GEN 2 PACKAGE
Datasheet
NVMFWS0D4N04XMT1G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products >Transistors >FETs, MOSFETs Single FETs, MOSFETs
Manufacturer onsemi
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 519A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 0.42mOhm @ 50A, 10V
Ultra Librarian 3D Model Ultra Librarian NVMFWS0D4N04XMT1G CAD Model

Description

  • Low RDS(on) to Minimize Conduction Losses
  • Low Capacitance to Minimize Driver Losses
  • Small Footprint (5x6 mm) with Compact Design
  • AEC−Q101 Qualified and PPAP Capable
  • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
