The ON Semiconductor P6KE39AG is a high-performance Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by system inductive load switching and lightning. With its robust construction and state-of-the-art semiconductor technology, the P6KE39AG is an essential component for safeguarding circuits in a wide range of applications, including automotive systems, industrial controls, power supply devices, and consumer electronics.

Product Features

• Peak Pulse Power Dissipation: The P6KE39AG offers a peak pulse power dissipation of 600 Watts at 10/1000μs waveform, ensuring reliable protection against high-energy transients.
• Breakdown Voltage: This device has a stand-off voltage of 33.3 volts, with a minimum breakdown voltage of 37.1 volts, providing a secure barrier against overvoltage conditions.
• Response Time: With a response time of less than 1 picosecond from 0V to BV min, the P6KE39AG ensures fast and effective clamping of transient voltages to protect your circuitry.
• Operating Temperature Range: The diode operates effectively over a wide temperature range from -55°C to +175°C, making it suitable for harsh environmental conditions.

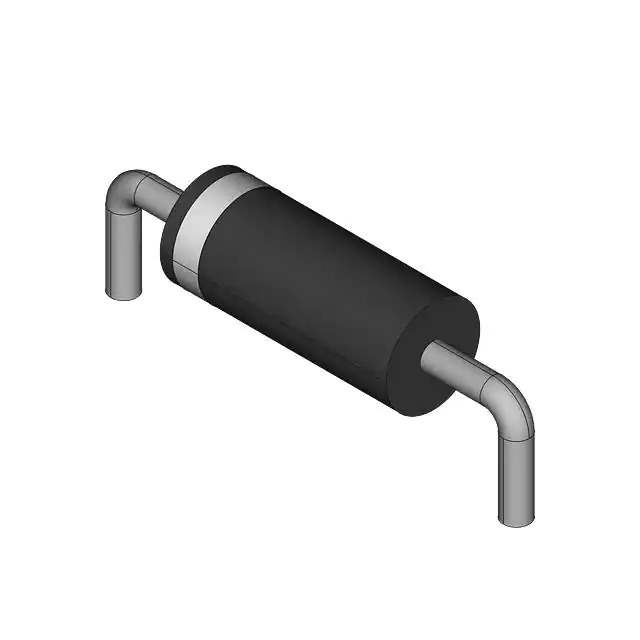

• Package: Encased in an axial-lead package, the P6KE39AG is designed for through-hole mounting, facilitating easy integration into a variety of board layouts.
• Compliance: It is RoHS compliant and adheres to the ISO 9001 and ISO/TS16949 quality standards, ensuring high reliability and performance consistency.

Applications

The versatility of the P6KE39AG TVS diode allows it to be utilized across a broad spectrum of applications. It is particularly well-suited for protecting voltage-sensitive components such as I/O interfaces, VCC bus, and other vulnerable circuits from electrical threats like ESD (Electrostatic Discharge), EFT (Electrical Fast Transients), and lightning surges.

In summary, the ON Semiconductor P6KE39AG is a robust and reliable solution for transient voltage suppression, offering excellent clamping capability, fast response time, and a wide operating temperature range. Its compliance with industry standards and adaptability to various applications make it a go-to choice for designers looking to enhance the durability and longevity of their electronic systems.
