Product Overview: S1JFP Rectifier from ON Semiconductor

The S1JFP is a high-performance surface-mount rectifier designed by ON Semiconductor, a leading provider in the semiconductor industry. This rectifier is engineered to deliver efficient and reliable performance for a wide range of applications. The S1JFP is part of the SxJ series, which is well-known for its robustness and high efficiency in rectification processes.

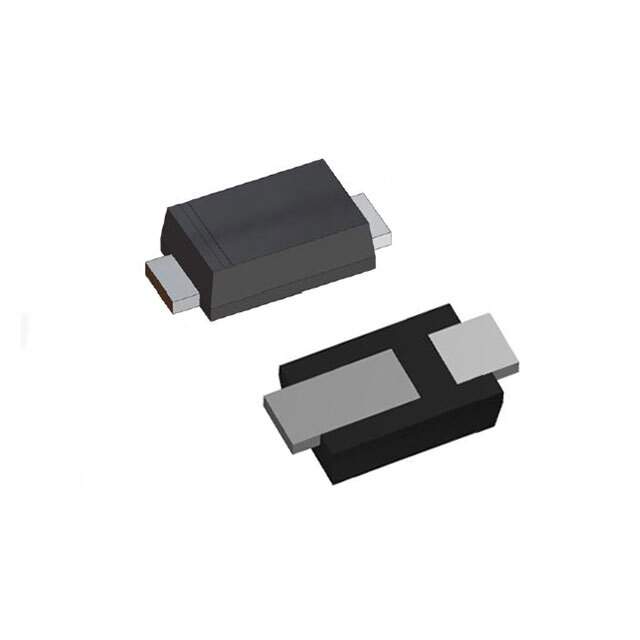

The S1JFP rectifier features a 600V reverse voltage capability and a forward current of 1A. Such specifications make it an excellent choice for high-voltage requirements in compact power supply designs. The rectifier is encapsulated in a DO-214AC (SMA) package, which offers a small footprint and is suitable for automated assembly processes, making it ideal for high-volume production.

ON Semiconductor has designed the S1JFP with a fast reverse recovery time, which minimizes power loss during the switch from conducting to non-conducting states. This feature is particularly beneficial in applications where efficiency is paramount, such as in switching power supplies, freewheeling diodes, and polarity protection circuits.

The S1JFP also boasts a low forward voltage drop, contributing to its overall efficiency by reducing the power dissipation and heat generation during operation. This characteristic is crucial for applications where thermal management is a concern, and it also helps in extending the lifespan of the product.

The rectifier's construction adheres to high environmental standards, featuring a Pb-free design and RoHS compliance, which reflects ON Semiconductor's commitment to environmentally friendly manufacturing practices. The S1JFP is also characterized by its robustness against moisture, with an MSL (Moisture Sensitivity Level) rating of 1, ensuring reliability even in humid conditions.

In summary, the S1JFP from ON Semiconductor is a versatile and efficient rectifier that meets the demands of modern electronic circuits. Its compact size, high voltage capability, and energy-efficient operation make it an excellent choice for designers looking to optimize their power management solutions.
