Same model may have multiple batches, images only for reference.

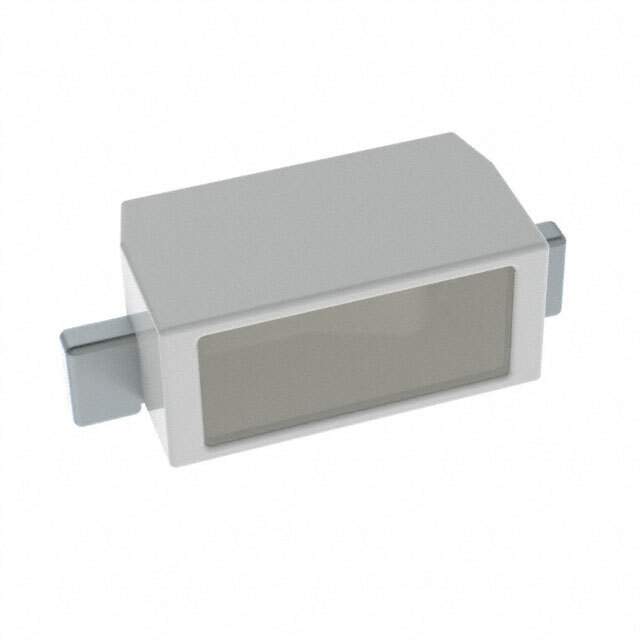

LB Y8SG-T1U2-35 Real Image
Same model may have multiple batches, images only for reference.

LB Y8SG-T1U2-35

Part No LB Y8SG-T1U2-35
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog OEM Parts (J - L)
Description LB Y8SG-T1U2-35, Micro SIDELED Series Blue LED, 470 nm SideView, Rectangle Lens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Blue
Contact Plating Tin
Depth 1.3 mm
Dominant Wavelength 470 nm
Forward Current 30 mA
Forward Voltage 3.7 V
Length 2.3 mm
Lens Color Clear
Lens Style Colorless, Diffused, Rectangular
Luminous Flux 1.35 lm
Luminous Intensity 710 mcd
Maximum Operating Temperature 110 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Packaging Tape and Reel
Radiation Hardening No
RoHS Compliant
Test Current 20 mA
Viewing Angle 120 °
Win Source Part Number 1068840-LB Y8SG-T1U2-35
Categories OEM Parts(J-L)
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LB Y8SG-T1U2-35 CAD Model

Description

The OSRAM Opto Semiconductors Inc. Y8SG-T1U2-35 is a blue LED with a rectangular lens that emits luminous flux of 1.35 lm and luminous intensity of 710 mcd.

  • Lens Shape: Rectangular
  • Luminous Flux: 1.35 lm
  • Luminous Intensity: 710 mcd
  • Forward Voltage: 3.7 V
  • Forward Current: 30 mA
  • Package: SMD
  • Viewing Angle: 120 degrees
  • RoHS Compliant: Yes
  • Operating Temperature: -40 to 110 degrees Celsius
  • Application: Surface mount
