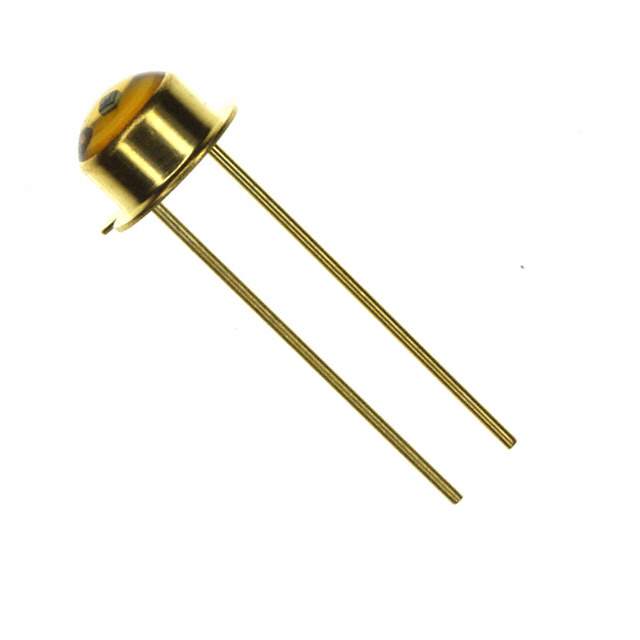

LD 242-2/3 Real Image1 LD 242-2/3 Real Image2
Same model may have multiple batches, images only for reference.
LD 242-2/3 Real Image1 LD 242-2/3 Real Image2
LD 242-2/3 Real Image1 LD 242-2/3 Real Image2
Same model may have multiple batches, images only for reference.

LD 242-2/3

Part No LD 242-2/3
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 950NM 300MA TO-18  /  Infrared (IR) Emitter 950nm 1.3V 300mA 4mW/sr @ 100mA 80° TO-18-2 Metal Can
Datasheet
LD 242-2/3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Package Bulk
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 300mA
Radiant Intensity (Ie) Min @ If 4mW/sr @ 100mA
Wavelength 950nm
Voltage - Forward (Vf) (Typ) 1.3V
Viewing Angle 80°
Orientation Top View
Temperature Range - Operating -40°C ~ 80°C (TA)
Mounting Type Through Hole
Package / Case TO-18-2 Metal Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names Q62703Q4749,LD24223,LD 242-2/3-ND,475-1397
Standard Package 1,000
Win Source Part Number 976337-LD 242-2/3
Ultra Librarian 3D Model Ultra Librarian LD 242-2/3 CAD Model

Description

The LD 242-2/3 is an infrared LED emitter that is manufactured by ams-OSRAM USA Inc.

  • Product Status: Obsolete
  • Popularity: Low
  • Voltage-Forward: 1.3V
  • Current-DC Forward: 300mA
  • Wavelength: 950nm
  • Viewing Angle: 80°
  • Radiant Intensity: 4mW/sr @ 100mA
  • Operating Temperature Range: -40°C to 80°C
