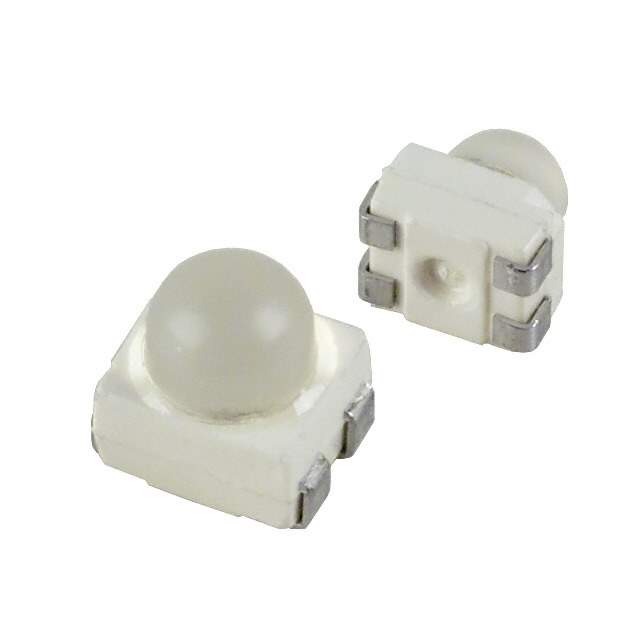

LY E63B-CBEA-26-1-Z Real Image
Same model may have multiple batches, images only for reference.

LY E63B-CBEA-26-1-Z

Part No LY E63B-CBEA-26-1-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color Yellow 594nm 4-Pin PLCC T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package PLCC
Color Yellow
Depth 3.4 mm
Dominant Wavelength 587 nm
Forward Current 50 mA
Forward Voltage 2.2 V
Height 3.8 mm
Illumination Color Yellow
Lead Free Yes
Length 3 mm
Lens Color Colorless
Lens Style Clear, Diffused
Lens Transparency Clear
Luminous Flux 3.05 lm
Luminous Intensity 4.7 cd
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 4
Packaging Tape and Reel
Power Dissipation 180 mW
Radiation Hardening No
REACH SVHC No SVHC
Reverse Voltage 12 V
RoHS Compliant
Test Current 50 mA
Viewing Angle 30 °
Wavelength 587 nm
Width 2.8 mm
Win Source Part Number 969222-LY E63B-CBEA-26-1-Z
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LY E63B-CBEA-26-1-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. 969222-LY E63B-CBEA-26-1-Z is a yellow LED with dimensions of 3mm x 2.8mm x 3.8mm.

  • Color: Yellow
  • Dimensions: 3mm x 2.8mm x 3.8mm
  • Mounting: Surface Mount Device
  • Viewing Angle: 30 degrees
  • Forward Voltage: 2.2V
  • Forward Current: 50mA
  • Luminous Intensity: 4.7cd
  • Power Dissipation: 180mW
  • Reverse Voltage: 12V
  • Package: PLCC
  • Pins: Four
  • Wavelength: 587nm
  • Luminous Flux: 3.05lm
  • RoHS Compliant: Yes
  • Lead-Free: Yes
