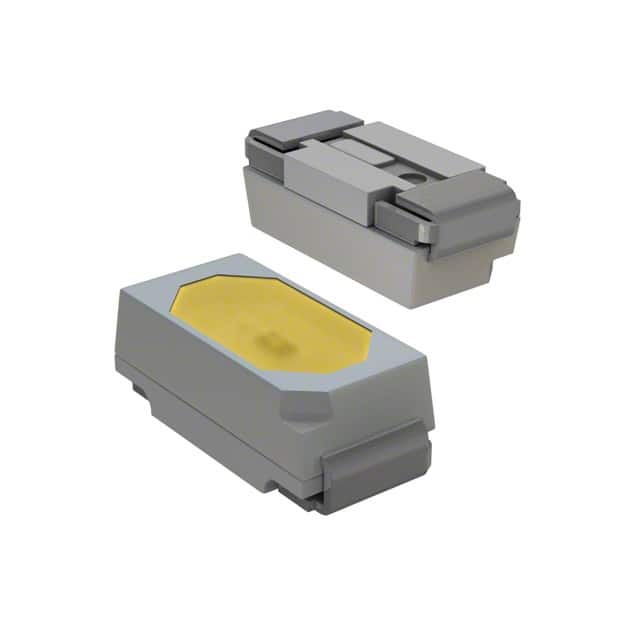

Same model may have multiple batches, images only for reference.
LCW JNSH.PC-BTCP-5L7N-1-20-R18 OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

LCW JNSH.PC-BTCP-5L7N-1-20-R18

Part No LCW JNSH.PC-BTCP-5L7N-1-20-R18
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series DURIS® E 3
Package Tape & Reel (TR)
Product Status Obsolete
Color White, Neutral
Configuration Standard
Lens Color Yellow
Lens Transparency Diffused
Millicandela Rating 2720mcd
Lens Style Rectangle with Flat Top
Lens Size 2.30mm x 1.15mm
Voltage - Forward (Vf) (Typ) 3.05V
Current - Test 20mA
Viewing Angle 110°
Mounting SMD (SMT)
Wavelength - Dominant 4000K
Package / Case 2-SMD, J-Lead
Supplier Device Package SMD
Dimension 3.00mm L x 1.40mm W
Height (Max) 1.30mm
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1315854-LCW JNSH.PC-BTCP-5L7N-1-20-R18
Ultra Librarian 3D Model Ultra Librarian LCW JNSH.PC-BTCP-5L7N-1-20-R18 CAD Model

Description

The DURIS® E 3 series LED indication component is a high-quality optoelectronic product that is perfect for use in various applications. This component is available in White, Neutral color and has a viewing angle of 110 degrees. The package is a tape and reel and SMD (SMT) mounting is available. The forward voltage is 3.05V and the current-test is 20mA. The wavelength-dominant is 4000K and the height is 1.30mm. The package/case is 2-SMD, J-Lead and the supplier device package is SMD. The dimension is 3.00mm L x 1.40mm W.
