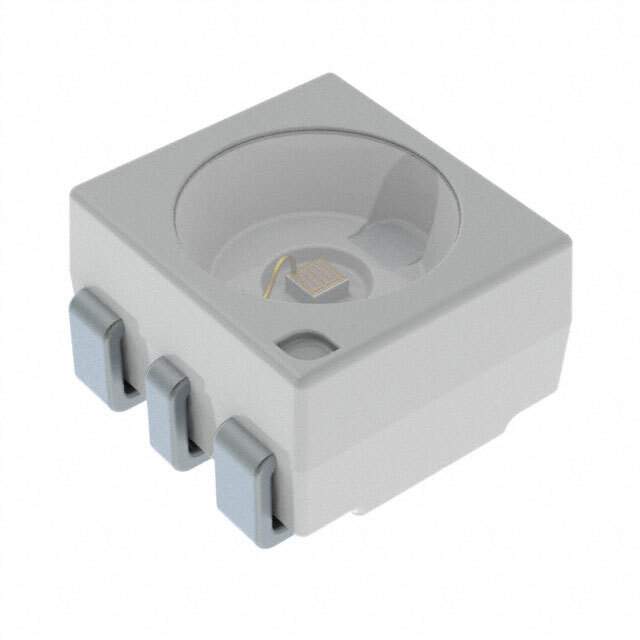

Same model may have multiple batches, images only for reference.

LR G6SP-CBEA-1-1-Z

Name: LR G6SP-CBEA-1-1-Z
Brand: OSRAM Opto Semiconductors Inc.
SKU: 1315439
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LR G6SP-CBEA-1-1-Z
Manufacturer	OSRAM Opto Semiconductors Inc.
Catalog	LED Lighting - Color
Datasheet	LR G6SP-CBEA-1-1-Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - Color
Mfr	ams-OSRAM USA Inc.
Series	Advanced Power TOPLED®
Package	Tape & Reel
Product Status	Not For New Designs
Color	Red
Wavelength	625nm (620nm ~ 629nm)
Current - Test	140mA
Voltage - Forward (Vf) (Typ)	2.1V
Lumens/Watt @ Current - Test	61 lm/W
Current - Max	200mA
Luminous Flux @ Current/Temperature	18lm (12lm ~ 24lm)
Temperature - Test	25°C
Viewing Angle	120°
Mounting	SMD (SMT)
Package / Case	6-SMD, J-Lead
Supplier Device Package	6-SMD
Dimension	0.130" L x 0.118" W (3.30mm x 3.00mm)
Height - Seated (Max)	0.083" (2.10mm)
Thermal Resistance of Package	50°C/W
Base Product Number	LRG6SP
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1315439-LR G6SP-CBEA-1-1-Z
Ultra Librarian 3D Model	Ultra Librarian LR G6SP-CBEA-1-1-Z CAD Model

Alternative Products

Description

The G6SP-CBEA-1-1-Z is a red Advanced Power TOPLED® LED from OSRAM.

Viewing Angle: 120 degrees
Forward Voltage: 2.1V
Current - Max: 200mA
Thermal Resistance: 50°C/W
Luminous Flux: 18lm @ 25°C
Package: 6-SMD, J-Lead
Dimension: 0.130” L x 0.118” W (3.30mm x 3.00mm)
