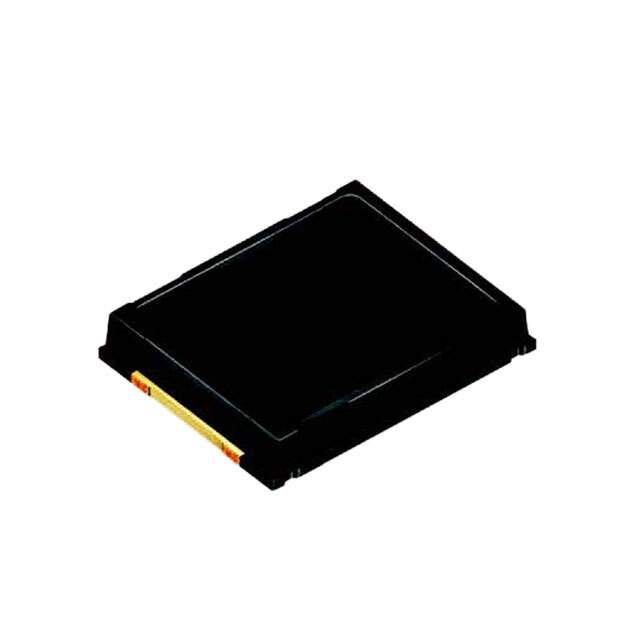

SFH 2200 FA Real Image
Same model may have multiple batches, images only for reference.

SFH 2200 FA

Part No SFH 2200 FA
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 940NM 2SMD / Photodiode 940nm 40ns 120° 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Mfr ams-OSRAM USA Inc.
Series Power TOPLED®
Package Tape & Reel
Product Status Obsolete
Wavelength 940nm
Spectral Range 740nm ~ 1100nm
Diode Type PIN
Response Time 40ns
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Dark (Typ) 1nA
Active Area 7.02mm2
Viewing Angle 120°
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Base Product Number SFH 2200
Other Names 475-3536-6,Q65112A0248,475-3536-2,475-3536-1
Standard Package 1,500
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1234979-SFH 2200 FA
Ultra Librarian 3D Model Ultra Librarian SFH 2200 FA CAD Model

Description

The ams-OSRAM USA Inc. SFH 2200 FA is an obsolete PIN diode type optical sensor that has a spectral range of 740nm to 1100nm.

  • Response Time: 40ns
  • Viewing Angle: 120°
  • Voltage Rating: 20VDC
  • Active Area: 7.02mm2
  • Mounting: SMD (SMT) mountable
  • Package / Case: 2-SMD, No Lead
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99 compliant
  • Packaging: Tape and reel packaging
  • Standard Package: 1,500 units
