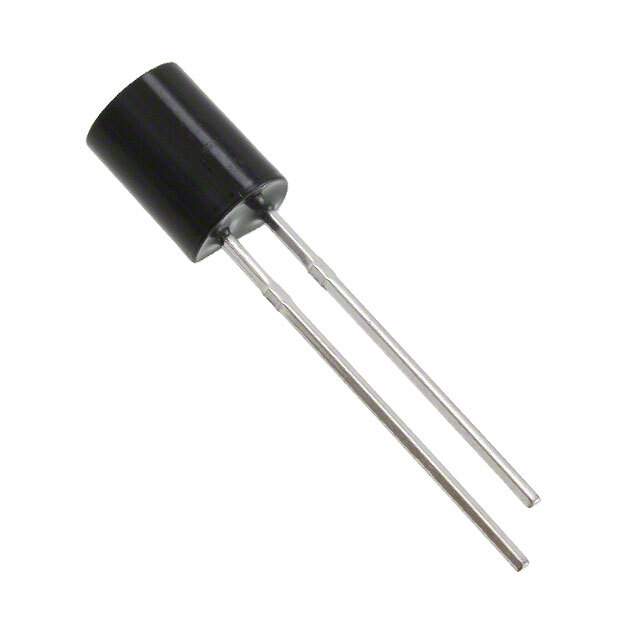

PD438B Real Image
Same model may have multiple batches, images only for reference.

PD438B

Part No PD438B
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE PIN IR 4.8MM CYL BK
Datasheet
PD438B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Bulk
Status Active
Wavelength 940nm
Spectral Range 840nm to 1100nm
Diode Type PIN
Response Time 50ns
Voltage - DC Reverse (Vr) (Max) 170V
Current - Dark (Typ) 5nA
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole
Dimension TO-226-2, TO-92-2 Long Body
Win Source Part Number 119886-PD438B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PD438B CAD Model

Description

The Everlight Electronics Co Ltd 119886-PD438B is a through-hole PIN diode designed for use in sensors and transducers applications.

  • Maximum Reverse Voltage: 170V
  • Response Time: 50ns
  • Supply Voltage Range: -25°C to 85°C
  • Supply and Demand Status: balanced
