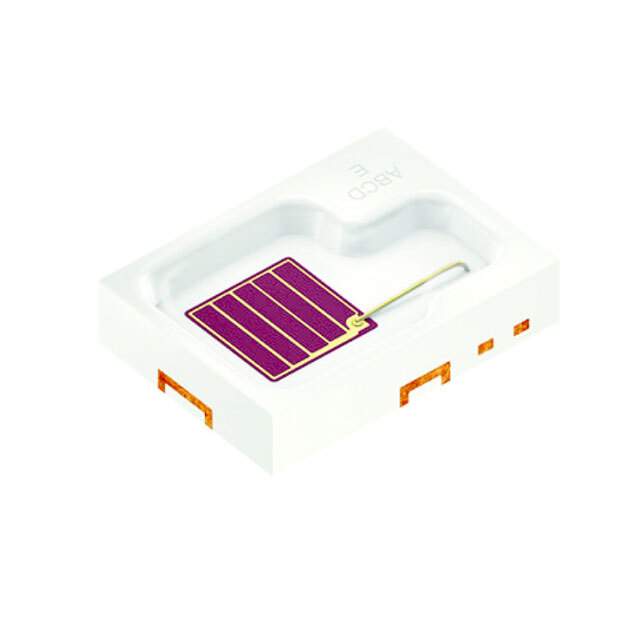

SFH 4776 Real Image
Same model may have multiple batches, images only for reference.

SFH 4776

Part No SFH 4776
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description IR BROADBAND EMITTER FOR SPECTRO / Infrared (IR) Emitter 2.95V 500mA 29mW/sr @ 350mA (Typ) 120° 1108 (2720 Metric)
Datasheet
SFH 4776 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Series SYNIOS® P2720
Package Tape & Reel
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 500mA
Radiant Intensity (Ie) Min @ If 29mW/sr @ 350mA (Typ)
Voltage - Forward (Vf) (Typ) 2.95V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 1108 (2720 Metric)
Other Names 475-3598-1,475-3598-2,475-3598-6,Q65112A4886
Standard Package 2,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242397-SFH 4776
Ultra Librarian 3D Model Ultra Librarian SFH 4776 CAD Model

Description

The SFH 4776 is an infrared LED emitter manufactured by ams-OSRAM USA Inc.

  • View: Top-view
  • Mounting: Surface mount
  • Maximum DC Forward Current: 500mA
  • Forward Voltage: 2.95V
  • Viewing Angle: 120°
  • Radiant Intensity: 29mW/sr @ 350mA (Typ)
  • REACH: REACH unaffected
  • Operating Temperature Range: -40°C to 85°C
