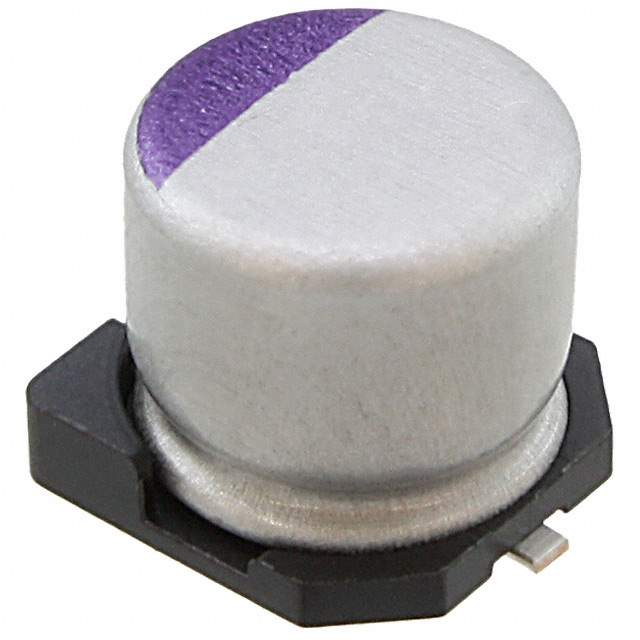

25SVPF47M Real Image
Same model may have multiple batches, images only for reference.

25SVPF47M

Part No 25SVPF47M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description Surface Mount Type | CAP ALUM POLY 47UF 20% 25V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 47μF
Tolerance ±20%
Voltage - Rated 25V
ESR (Equivalent Series Resistance) 30mOhm
Lifetime at Temp. 5000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 140mA at 120Hz
Ripple Current at High Frequency 2.8A at 100kHz
Parts Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123385-25SVPF47M
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 25SVPF47M CAD Model

Description

The Panasonic Electronic Components capacitor with Win Source Part Number 1123385-25SVPF47M is a polymer type with a capacitance of 47μF and voltage rating of 25V.

  • Type: Polymer
  • Capacitance: 47μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • ESR: 30mOhm
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Manufacturer's Homepage: www.panasonic.com/industrial/
