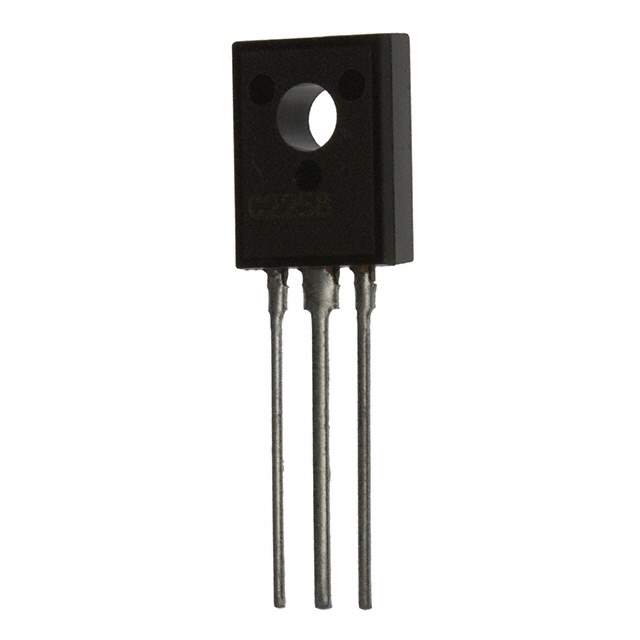

The 2SC1847 is a silicon NPN epitaxial planar transistor manufactured by Panasonic. This transistor is designed for low noise amplifier applications, especially in the VHF and UHF frequency ranges.

Applications:

• Low-noise amplifiers (LNA)
• VHF/UHF receivers
• RF front-end circuits
• Television tuners
• High-sensitivity preamplifiers

Features:

• NPN Silicon Epitaxial Planar Transistor
• Extremely low noise figure
• High gain
• High transition frequency
• Small signal amplification

Benefits:

• Minimizes noise in sensitive receiver circuits, improving signal-to-noise ratio.
• Provides substantial amplification of weak signals.
• Suitable for high-frequency applications due to its high transition frequency (fT).
• Enhances the performance of RF receivers.
• Ideal for applications where signal clarity is paramount.

Additional Details:

The 2SC1847 is usually found in a small-signal package such as TO-92. Key parameters include its noise figure (NF), gain-bandwidth product (fT), and collector-emitter breakdown voltage (VCEO). Careful attention should be paid to the biasing conditions to achieve optimal noise performance. Consult the Panasonic datasheet for detailed specifications, including noise figure curves, S-parameters, and recommended operating points. Proper grounding and shielding techniques are crucial when using this transistor in sensitive RF applications.
