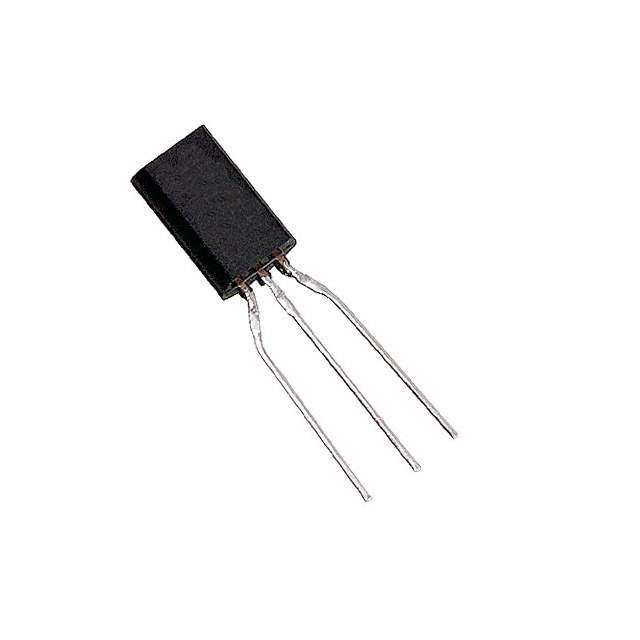

The 2SC4208A-R is a silicon NPN epitaxial planar transistor manufactured by Panasonic. This transistor is designed for low-noise amplifier applications, particularly in VHF and UHF bands. It offers a combination of high gain and low noise characteristics, making it suitable for sensitive receiver circuits and other high-frequency applications.

Applications:

• Low-Noise Amplifiers (LNA): Used in LNA circuits to amplify weak signals with minimal added noise.
• VHF/UHF Amplifiers: Employed in VHF (Very High Frequency) and UHF (Ultra High Frequency) amplifiers.
• RF Receivers: Utilized in the front-end stages of radio frequency receivers for signal amplification.
• Communication Equipment: Found in communication devices requiring low-noise and high-gain amplification.
• High-Frequency Oscillators: Used in oscillator circuits for generating stable high-frequency signals.

Features:

• Low Noise Figure: Exhibits a low noise figure, essential for amplifying weak signals without adding significant noise.
• High Gain: Provides high current gain, ensuring efficient amplification.
• High Transition Frequency: Features a high transition frequency (fT), enabling efficient operation at high frequencies.
• Epitaxial Planar Structure: Ensures excellent high-frequency performance and reliability.
• NPN Transistor: An NPN transistor configuration suitable for high-frequency and low-noise applications.

Benefits:

• Low-Noise Signal Amplification: Significantly reduces noise, improving the signal-to-noise ratio in sensitive circuits.
• Efficient High-Frequency Performance: The high transition frequency ensures efficient amplification at VHF and UHF frequencies.
• Stable and Reliable Operation: The epitaxial planar structure provides stable and reliable performance.
• Versatile Application: Suitable for various high-frequency and low-noise applications.
• Compact Design: Enables the creation of compact and efficient high-frequency circuits.

Additional Details:

The 2SC4208A-R typically comes in a small surface mount package, such as SOT-23. Key specifications include a collector-emitter voltage (VCEO) rating suitable for low-voltage applications, a collector current (IC) rating indicating its current handling capability, and a power dissipation rating that determines the maximum power it can safely dissipate. The 'R' suffix often indicates specific gain characteristics or packaging. Always consult the official Panasonic datasheet for precise specifications and application guidelines.
