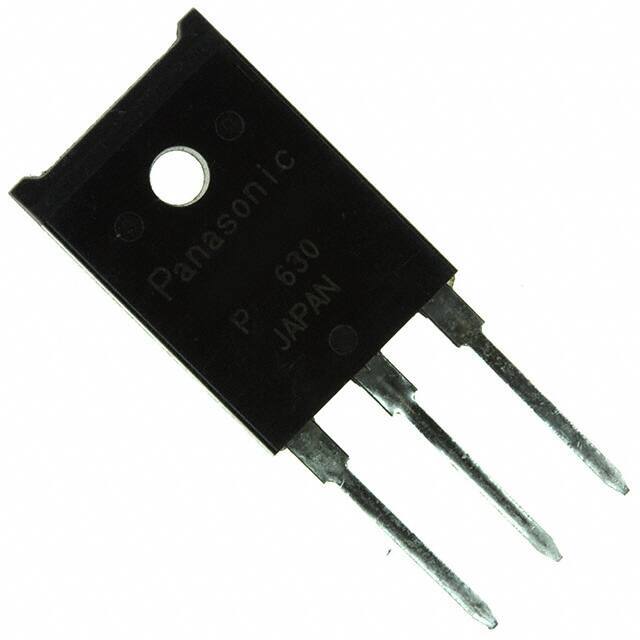

Same model may have multiple batches, images only for reference.
2SD17050P Panasonic
Same model may have multiple batches, images only for reference.

2SD17050P

Part No 2SD17050P
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr Panasonic Electronic Components
Package Bulk
Product Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Max) 10 A
Voltage - Collector Emitter Breakdown (Max) 80 V
Vce Saturation (Max) @ Ib, Ic 1.5V @ 1A, 10A
Current - Collector Cutoff (Max) 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 130 @ 3A, 2V
Power - Max 3 W
Frequency - Transition 20MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case TOP-3F
Supplier Device Package TOP-3F-A1
Base Product Number 2SD170
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1315077-2SD17050P
Ultra Librarian 3D Model Ultra Librarian 2SD17050P CAD Model

Description

The 2SD17050P is a bipolar single NPN transistor.

  • Maximum Power: 3W
  • Collector-Emitter Breakdown Voltage: 80V
  • Maximum Collector Current: 10A
  • Vce Saturation: 1.5V @ Ib, Ic and 10A
  • Current Collector Cutoff: 10µA (ICBO)
  • DC Current Gain: 130 @ 3A, 2V
  • Frequency Transition: 20MHz
  • Package: TOP-3F
  • Mounting: through hole
  • Operating Temperature Range: 150°C (TJ)
