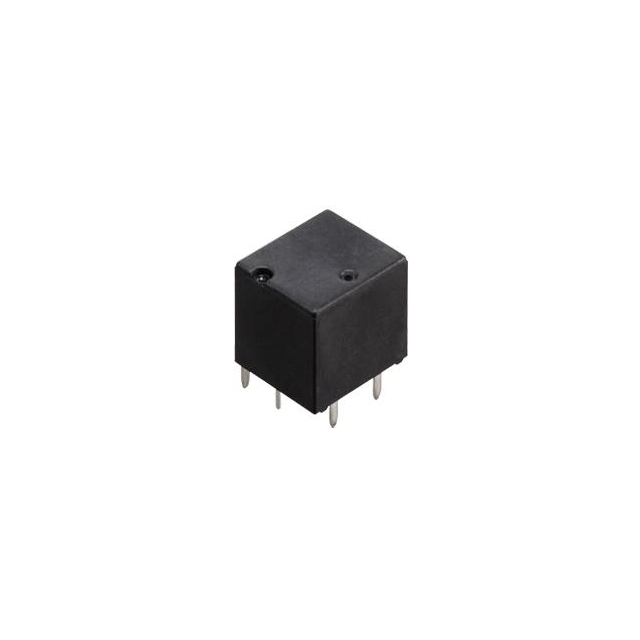

ACTE3CH2A05V Real Image
Same model may have multiple batches, images only for reference.

ACTE3CH2A05V

Part No ACTE3CH2A05V
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDTX2 20A 12V  /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr Panasonic Electric Works
Series ACTE
Package Tube
Coil Type Non Latching
Coil Current 75 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C) x 2
Contact Rating (Current) 20 A
Switching Voltage 14VDC - Nom
Must Operate Voltage 6.5 VDC
Must Release Voltage 0.8 VDC
Operate Time 10 ms
Release Time 10 ms
Features Sealed - Flux Protection
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 110°C
Contact Material Silver Alloy
Coil Power 900mW
Coil Resistance 160 Ohms
Base Product Number ACTE3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-ACTE3CH2A05V
Standard Package 40
Win Source Part Number 959465-ACTE3CH2A05V
Ultra Librarian 3D Model Ultra Librarian ACTE3CH2A05V CAD Model

Description

The Panasonic Electric Works ACTE3CH2A05V is an automotive relay with a contact rating of 20A and a switching voltage of 14VDC - Nom.

  • Contact Rating: 20A
  • Switching Voltage: 14VDC - Nom
  • Coil Voltage: 12VDC
  • Coil Resistance: 160 Ohms
  • Package: Tube
  • Standard Package: 40
  • Contact Form: SPDT (1 Form C) x 2
  • Contact Material: Silver alloy
  • Coil Type: Non-latching
  • Coil Current: 75mA
  • Operate Time: 10ms
  • Release Time: 10ms
  • Coil Power: 900mW
  • Mounting Type: Through-hole
  • Temperature Range: -40°C ~ 110°C
