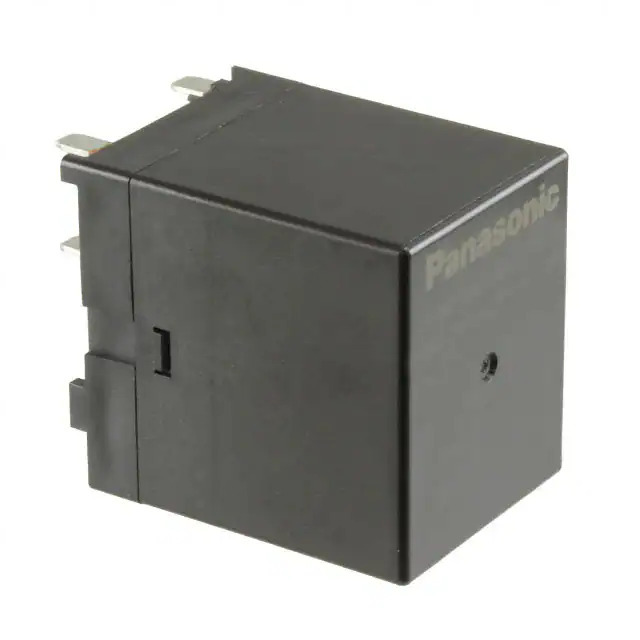

AHES3291 Panasonic
Same model may have multiple batches, images only for reference.

AHES3291

Part No AHES3291
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 35A 12V / General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series HE-S
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 35 A
Switching Voltage 277VAC - Nom
Coil Current 157 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 76.6 Ohms
Base Product Number AHES32
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373400-AHES3291
Ultra Librarian 3D Model Ultra Librarian AHES3291 CAD Model

Description

The Panasonic Electric Works HE-S series power relay is a reliable and durable component suitable for various applications.

  • Coil Voltage: 12VDC
  • Contact Rating: 35A
  • Contact Form: DPST-NO (2 Form A)
  • Switching Voltage: 277VAC
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Termination Style: PC Pin
  • Seal: Flux Protection
  • Operate Time: 30ms
  • Release Time: 10ms
  • Latching: Non-Latching
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 0.6VDC
  • Mounting Type: Through Hole
  • General Purpose: Power Control
