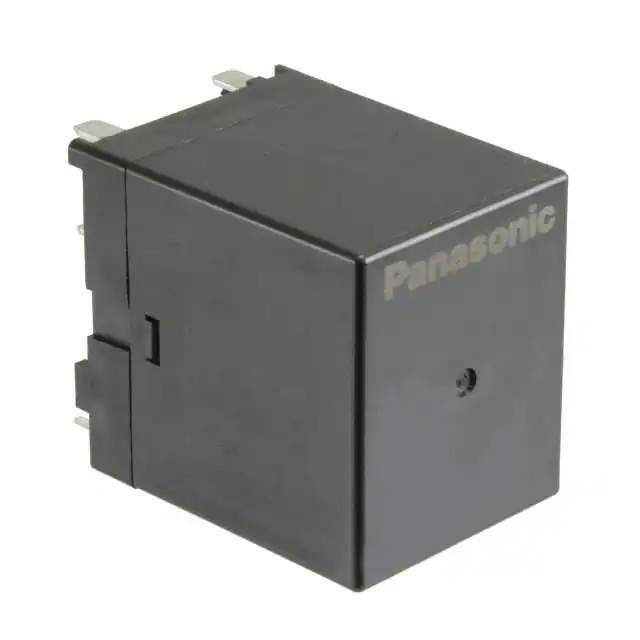

AHES4191 Real Image
Same model may have multiple batches, images only for reference.

AHES4191

Part No AHES4191
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 3PST 35A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series HE-S
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form 3PST-2NO/1NC (2 Form A, 1 Form B)
Contact Rating (Current) 35 A
Switching Voltage 277VAC - Nom
Coil Current 157 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 76.6 Ohms
Base Product Number AHES41
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 860795-AHES4191
Ultra Librarian 3D Model Ultra Librarian AHES4191 CAD Model

Description

The HE-S series from Panasonic offers power relays with high current handling capabilities.

  • Part Number: AHES4191
  • Mounting Type: Through-hole
  • Termination Style: PC pin
  • Contact Form: 3PST-2NO/1NC (2 Form A, 1 Form B)
  • Contact Material: Silver tin oxide (AgSnO)
  • Coil Resistance: 76.6 Ohms
  • Coil Current: 157 mA
  • Coil Voltage: 12VDC
  • Contact Rating: 35 A
  • Switching Voltage: 277VAC
  • Sealed: Flux protection
  • Product Status: Active from Panasonic
