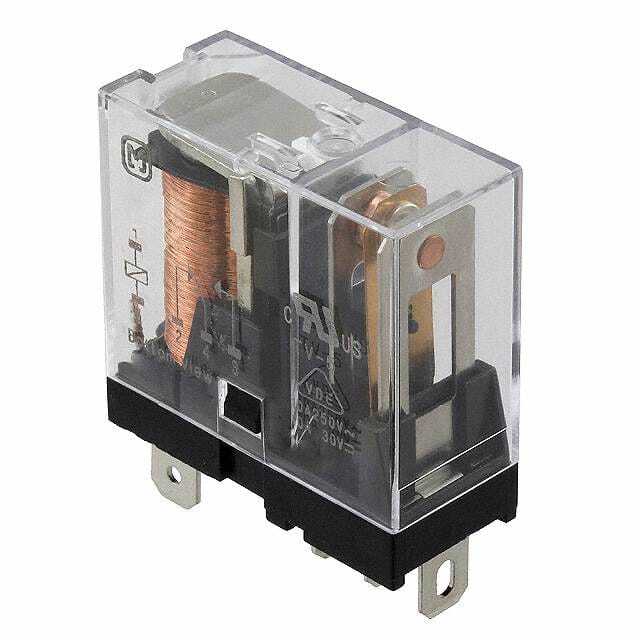

Same model may have multiple batches, images only for reference.
AHN12012

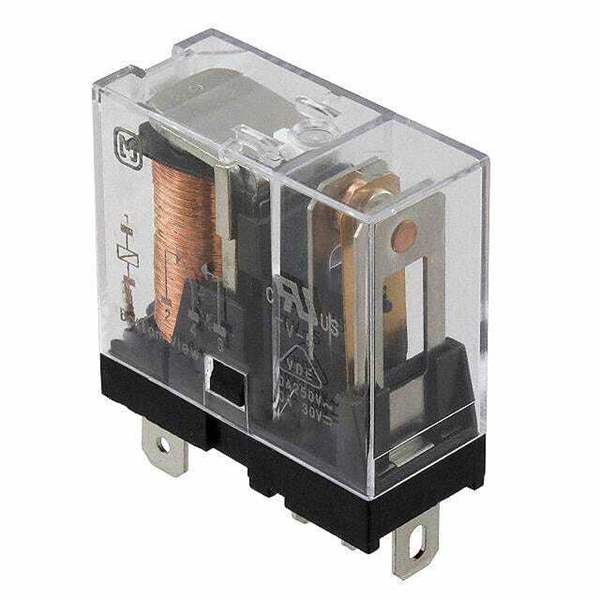

Same model may have multiple batches, images only for reference.

AHN12012

Part No AHN12012
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series AHN
Package Tray
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 44.4 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 50°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 270 Ohms
Base Product Number AHN120
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 873838-AHN12012
Ultra Librarian 3D Model Ultra Librarian AHN12012 CAD Model

Description

The AHN12012 is a power relay with a contact form of SPDT (1 Form C) manufactured by Panasonic.

  • Category: Power Relays, Over 2 Amps
  • Series: AHN series
  • Termination Style: Plug In
  • Package Type: Tray
  • Standard Package: 50 pieces
  • Coil Resistance: 270 Ohms
  • Coil Current: 44.4 mA
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Relay Type: General Purpose
  • Coil Type: Non-Latching
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 16 A
  • Maximum Switching Voltage: 250VAC and 30VDC
  • Product Status: Obsolete
  • ECCN: EAR99
  • Threat of Fake Products: 34%
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.41.0050
