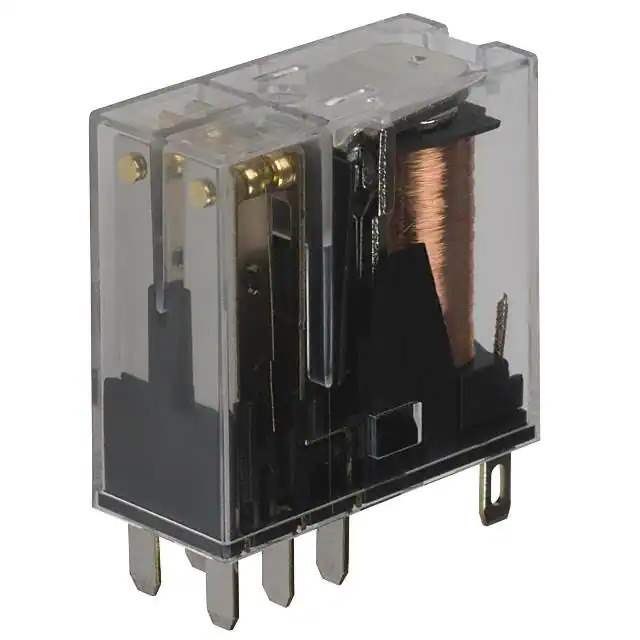

AHN12324 Real Image
Same model may have multiple batches, images only for reference.

AHN12324

Part No AHN12324
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series AHN
Package Box
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 22 mA
Coil Type Non Latching
Features Diode, Lighted Indicator
Termination Style Plug In
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 50°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.09 kOhms
Base Product Number AHN123
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0075
Win Source Part Number 860798-AHN12324
Ultra Librarian 3D Model Ultra Librarian AHN12324 CAD Model

Description

The AHN12324 is a power relay designed for applications requiring high current switching.

  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 16 A
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.09 kOhms
  • Features: Diode, Lighted Indicator
  • Termination Style: Plug-In
  • Package: Box
  • Series: AHN
  • Manufacturer: Panasonic
  • Standard Package: 500 pcs
  • Product Status: Obsolete
