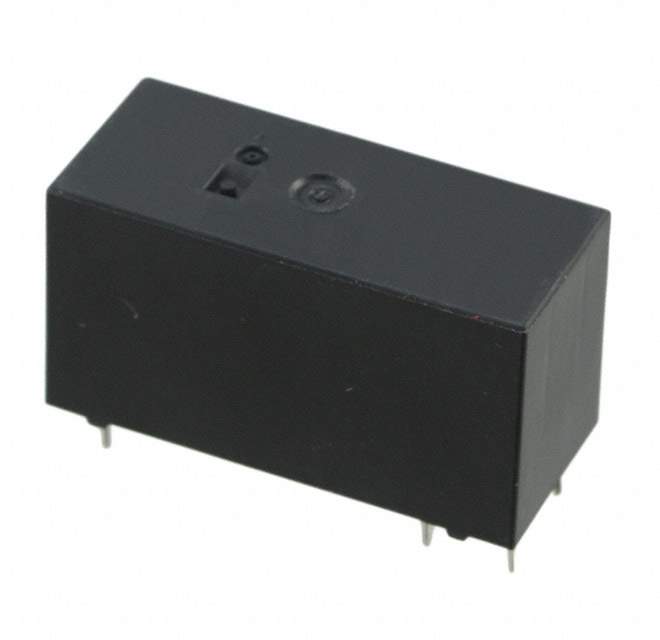

ALZ21B24 Real Image
Same model may have multiple batches, images only for reference.

ALZ21B24

Part No ALZ21B24
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V
Datasheet
ALZ21B24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 440VAC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 15ms
Release Time 5ms
Features Insulation - Class B, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 1.44 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 142104-ALZ21B24
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian ALZ21B24 CAD Model

Description

Product Overview

The ALZ21B24 is tailored for systems operating at a standard 24V, offering stability and enhanced performance for a wide range of applications.

Features and Benefits

  • Standard 24V Compatibility: Ensures seamless integration with existing systems.
  • Reliable Performance: Offers stability and efficiency in operation.
  • Robust and Durable: Designed to last in various operational conditions.

Applications

  • Industrial Automation Systems
  • Power Distribution Units
  • Renewable Energy Projects
