Same model may have multiple batches, images only for reference.

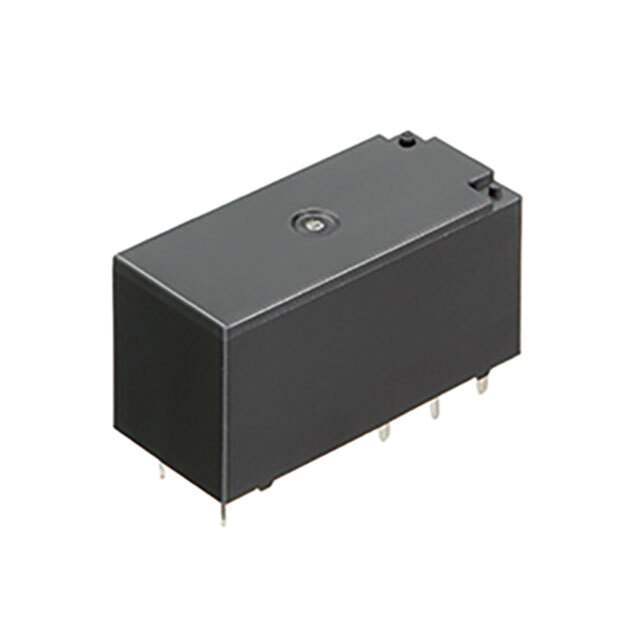

ALZN1B12W Panasonic Electric Works
Same model may have multiple batches, images only for reference.

ALZN1B12W

Part No ALZN1B12W
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 12V
Datasheet
ALZN1B12W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307704-ALZN1B12W
Category Relays -Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Packaging Tray
Part Status Last Time Buy
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 440VAC - Max
Coil Current 33.3 mA
Ultra Librarian 3D Model Ultra Librarian ALZN1B12W CAD Model

Description

  • Low profile type with height of 15.7 mm
  • 12.5 (W) x 28.8 (L) x 15.7 (H) mm
  • Superior heat resistance and tracking resistance
    Ambient temperatures 85°C (class B), 105°C (class F)
    EN60335-1 GWT compliant
  • Long insulation distance(between contact and coil)
    Clearance/creepage distance : Min.10 mm
    Surge withstand voltage : 10,000 V
