Same model may have multiple batches, images only for reference.

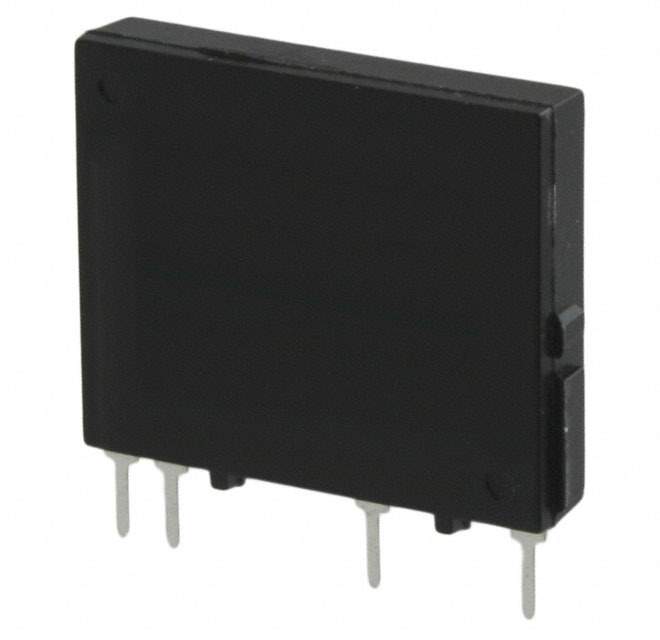

AQG22224 Real Image
Same model may have multiple batches, images only for reference.

AQG22224

Part No AQG22224
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description SSR RELAY SPST-NO 2A 75-264V  /  Solid State SPST-NO (1 Form A) 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Panasonic Electric Works
Series AQ-G
Package Bulk
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC
Voltage - Input 19.2 ~ 28.8VDC
Voltage - Load 75 V ~ 264 V
Load Current 2 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Base Product Number AQG222
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Other Names AQG22224-ND,255-5986,AQG22224-NDR
Standard Package 20
Win Source Part Number 983833-AQG22224
Ultra Librarian 3D Model Ultra Librarian AQG22224 CAD Model

Description

The 983833-AQG22224 from Panasonic Electric Works is a SPST-NO (1 Form A) solid state relay with a load current of 2A and a voltage load of 75V to 264V.

  • Load Current: 2A
  • Voltage Load: 75V to 264V
  • Voltage Input: 19.2V to 28.8VDC
  • Termination Style: PC Pin
  • Package: through-hole 4-SIP
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.41.0030
  • Other names: AQG22224-ND, 255-5986, AQG22224-NDR
  • Base Product Number: AQG222
