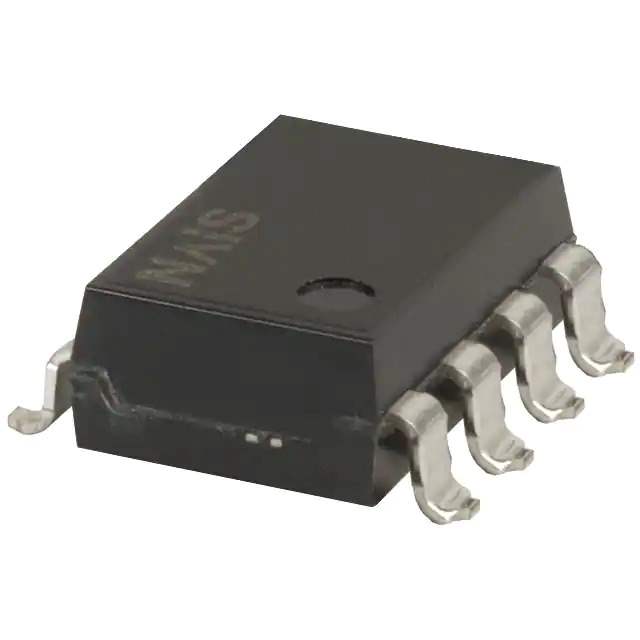

AQW224NAX Real Image
Same model may have multiple batches, images only for reference.

AQW224NAX

Part No AQW224NAX
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 40MA 0-400V / Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQW
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC (RF)
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 400 V
Load Current 40 mA
On-State Resistance (Max) 100 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Base Product Number AQW224
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564409-AQW224NAX
Ultra Librarian 3D Model Ultra Librarian AQW224NAX CAD Model

Description

The 564409-AQW224NAX is a PhotoMOS™ AQW series solid state relay from Panasonic.

  • Series: PhotoMOS™ AQW
  • Manufacturer:Panasonic
  • Termination Style: Gull Wing
  • Package: Tape & Reel
  • Voltage Input: 1.14VDC
  • Output Types: AC and DC
  • Circuit Configuration: SPST-NO (1 Form A) x 2
  • On-State Resistance: 100 Ohms
  • Load Current: 40 mA
  • Voltage Load Range: 0V to 400V
  • Mounting Type: Surface Mount
  • Package Size: 8-SMD, 0.300" (7.62mm)
