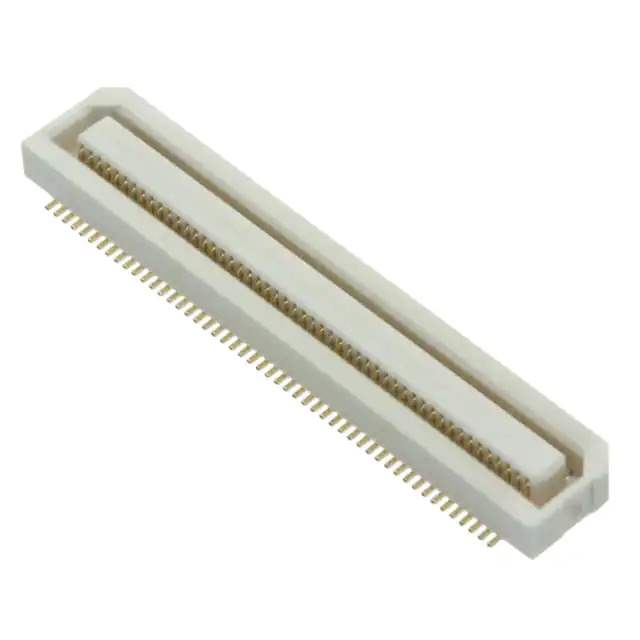

AXK520147YG Real Image
Same model may have multiple batches, images only for reference.

AXK520147YG

Part No AXK520147YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 20POS SMD GOLD / 20 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P5K
Package Tape & Reel
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Mated Stacking Heights 3mm, 3.5mm
Height Above Board 0.085" (2.16mm)
Base Product Number AXK520147
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862757-AXK520147YG
Ultra Librarian 3D Model Ultra Librarian AXK520147YG CAD Model

Description

The AXK520147YG is a rectangular connector array from the P5K series by Panasonic.

  • Connector Type: Socket
  • Contacts: Center Strip
  • Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Contact Finish: Gold
  • Package: Tape & Reel
  • Standard Package: 1,500 pcs
  • Mounting: Surface Mount
  • Height Above Board: 0.085" (2.16mm)
  • Mated Stacking Heights: 3mm and 3.5mm
  • Status: Active
