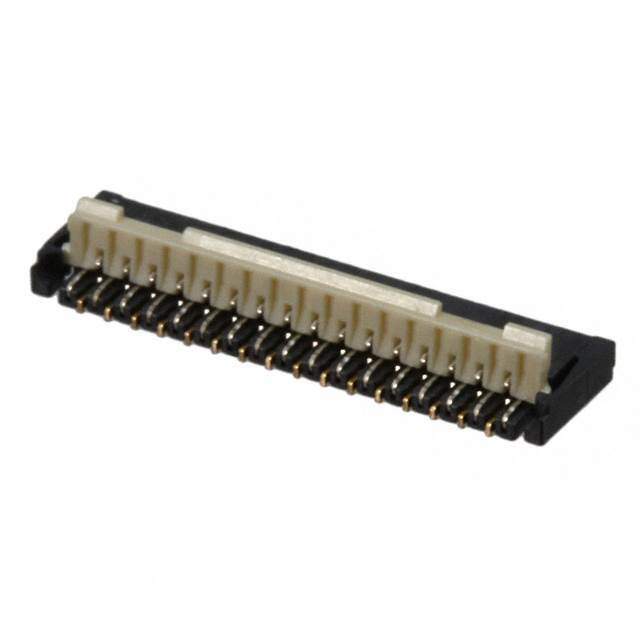

Same model may have multiple batches, images only for reference.

AYF333335A

Name: AYF333335A
Brand: Panasonic
SKU: 435815
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AYF333335A
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 33POS 0.30MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panasonic Electric Works
Packaging	Cut Strip
Status	Active
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	33
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.036" (0.90mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.2A per Contact
Contact Finish Thickness	Flash
Mating Cycles	20
Win Source Part Number	1021156-AYF333335A
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	500
Ultra Librarian 3D Model	Ultra Librarian AYF333335A CAD Model

Alternative Products

Description

This Panasonic FPC connector has 33 positions and a pitch of 0.012" (0.30mm).

Current Rating: 0.2A per contact
Voltage Rating: 50V
Mounting: Surface Mount, Right Angle
Locking Feature: Flip Lock, Backlock
Cable End Type: Tapered
Housing Material: Liquid Crystal Polymer (LCP)
Popularity: Medium
Supply and Demand Status: Balanced
Package Quantity: 500 pieces
