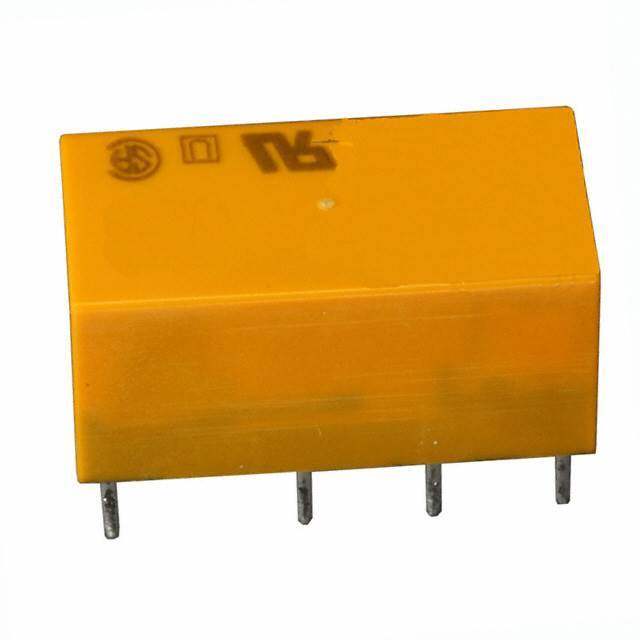

DS2E-M-DC12V Real Image
Same model may have multiple batches, images only for reference.

DS2E-M-DC12V

Part No DS2E-M-DC12V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 12V
Datasheet
DS2E-M-DC12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Amber
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 360 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 107333-DS2E-M-DC12V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DS2E-M-DC12V CAD Model

Description

DS2E-M-DC12V

The DS2E-M-DC12V is a general-purpose relay characterized by high sensitivity and reliable switching phenomena. It is perfect for use in electric control systems and instrumentation setups requiring dependable performance.

  • Applications:
    • Home appliances
    • Industrial machinery
    • Automation and control systems
    • Switching relay circuits
  • Features and Benefits:
    • High sensitivity ensures efficient operation
    • Compact size for easy installation
    • Robust design guarantees long-term reliability
    • Versatile as it covers a wide voltage range
  • Additional Details:
    • Comes with coil voltage at DC 12V
    • Square-shaped relay supports diverse applications
    • Double pole double throw (DPDT) configuration
    • Compliant with global safety standards
