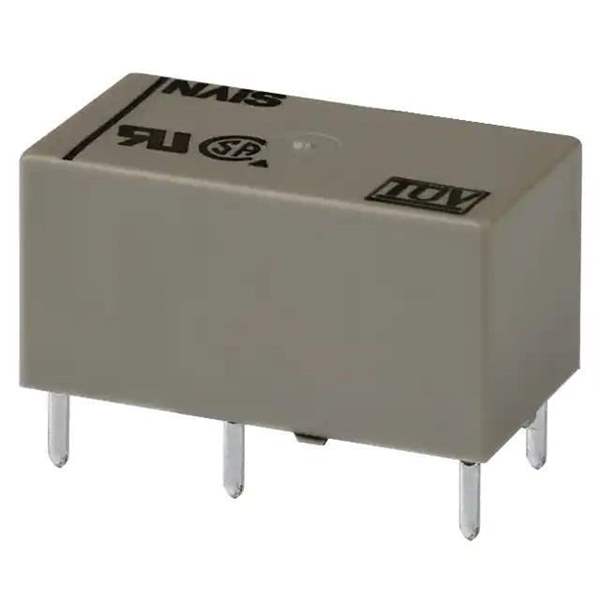

DSP1-L-DC5V

Part No DSP1-L-DC5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 5A 5V / General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 5VDC Coil Through Hole
Datasheet
DSP1-L-DC5V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DSP
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 30 mA
Coil Type Latching, Single Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 167 Ohms
Base Product Number DSP1-L
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 869713-DSP1-L-DC5V
Ultra Librarian 3D Model Ultra Librarian DSP1-L-DC5V CAD Model

Description

The Panasonic 869713-DSP1-L-DC5V is a power relay from the DSP series.

  • Termination Style: PC pin
  • Package: bulk
  • Contact Form: DPST-NO/NC (1 Form A, 1 Form B)
  • Contact Material: silver tin oxide (AgSnO)
  • Coil Resistance: 167 Ohms
  • Coil Current: 30 mA
  • Operate Time: 10 ms
  • Relay Type: general-purpose type with a latching, single coil design
  • Coil Voltage: 5VDC
  • Contact Rating: 5 A
  • Switching Voltage: 250VAC and 30VDC maximum
  • Release Time: 5 ms
  • Seal: fully sealed
  • Mounting Type: through-hole
  • Operating Temperature: -40°C to 65°C
  • Application: suitable for various electronic applications
