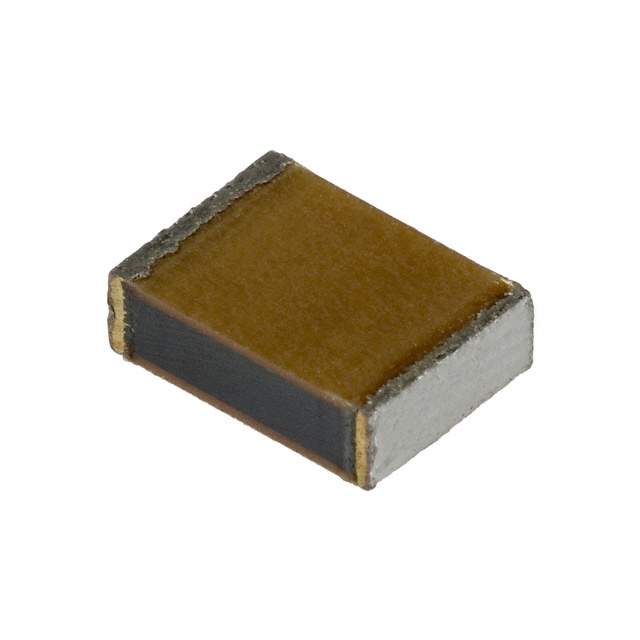

The ECHU1H154GC9 is a film capacitor manufactured by Panasonic. It is part of the EC Series, known for its reliability and performance in diverse electronic applications. The capacitor is designed to provide stable capacitance and low losses, making it suitable for sensitive circuits.

Applications:

• Power supplies
• Inverters
• Audio equipment
• Lighting ballasts
• General-purpose electronic circuits

Features:

• Capacitance: 0.15µF (150nF)
• Voltage Rating: 50V DC
• Tolerance: ±2%
• Dielectric Material: PPS (Polyphenylene Sulfide) Film
• Operating Temperature Range: -40°C to +105°C
• RoHS Compliant: Yes
• Lead Spacing: 5mm
• Flame Retardant Epoxy Resin Coating: Provides moisture resistance and electrical insulation.
• Self-Healing Properties: Enhances reliability by allowing recovery from minor over-voltage events.

Benefits:

• High Stability: PPS film dielectric ensures stable capacitance over a wide temperature range.
• Low Losses: Efficient performance in high-frequency applications.
• Long Life: Designed for long-term reliability.
• Compact Size: Suitable for dense circuit board designs.
• Safety: Flame retardant coating for enhanced safety.

Additional Details:

The ECHU1H154GC9 utilizes a metallized PPS film, ensuring a consistent capacitance value and a low dissipation factor. The capacitor's small size allows it to be used in applications where space is limited. Its electrical characteristics and robustness make it a reliable choice for various electronic devices.

Typical uses include filtering, coupling, decoupling, and timing. The 2% tolerance allows for precise operation in critical applications.
