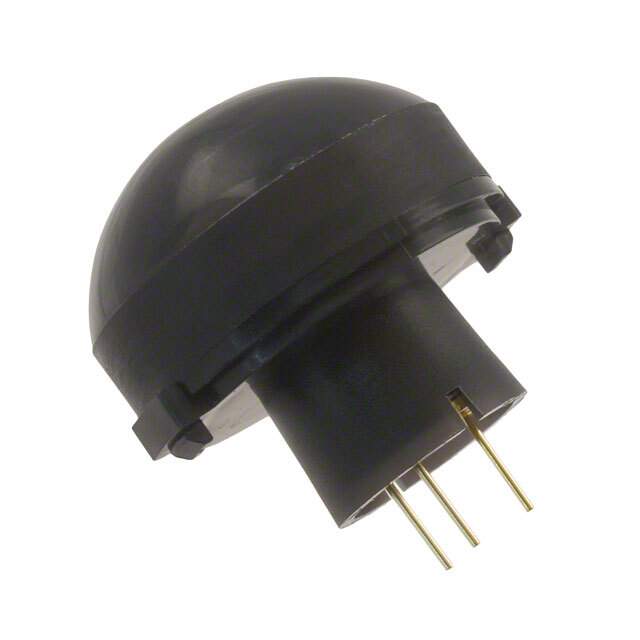

EKMC1603112 Real Image
Same model may have multiple batches, images only for reference.

EKMC1603112

Part No EKMC1603112
Manufacturer Panasonic
Catalog Motion Sensors - Optical
Description SENSOR MOTION PIR 12M RANGE BLK / High-sensitive human detection sensor with built-in amp.
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Sensor Type PIR (Passive Infrared)
Sensing Distance 472" (12m) 39.4'
Output Type Digital
Supply Voltage (V) 3V ~ 6V
Trigger Type Internal
Features Polyethylene, Black Lens
Temperature Range - Operating -20°C ~ 60°C
Detection Pattern Long
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811599-EKMC1603112
Ultra Librarian 3D Model Ultra Librarian EKMC1603112 CAD Model

Description

The Panasonic Electric Works EKMC1603112 is a PIR (Passive Infrared) sensor.

  • Sensing Distance: 472 inches (12m)
  • Detection Pattern: Long
  • Supply Voltage Range: 3V to 6V
  • Triggered: Internally
  • Lens: Polyethylene black
  • Operating Temperature Range: -20°C to 60°C
