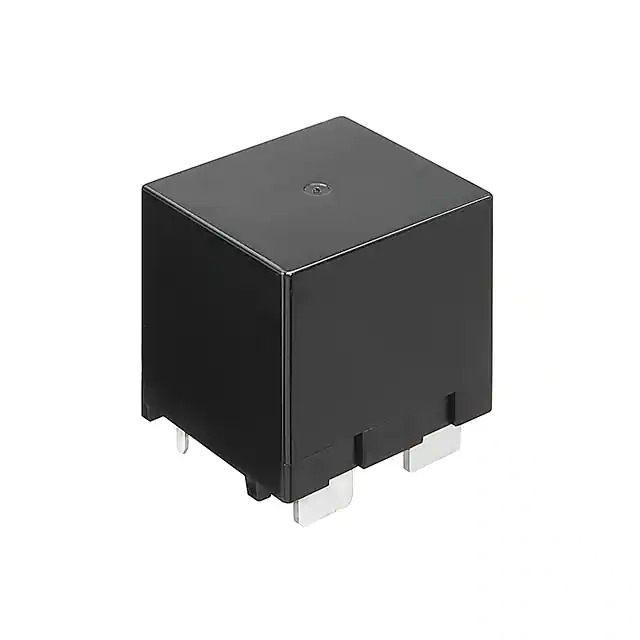

HE1AN-P-DC12V-H18 Panasonic
Same model may have multiple batches, images only for reference.

HE1AN-P-DC12V-H18

Part No HE1AN-P-DC12V-H18
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 35A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series HE-PV
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 35 A
Switching Voltage 490VAC, 48VDC - Max
Coil Current 160 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating -
Coil Insulation -
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -50°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 75 Ohms
Base Product Number HE1AN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373444-HE1AN-P-DC12V-H18
Ultra Librarian 3D Model Ultra Librarian HE1AN-P-DC12V-H18 CAD Model

Description

The HE1AN-P-DC12V-H18 is a power relay manufactured by Panasonic Electric Works. It belongs to the HE-PV series and has a bulk packaging.

  • Type: General Purpose
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating (Current): 35A
  • Coil Voltage: 12VDC
  • Switching Voltage: 490VAC, 48VDC
  • Coil Current: 160mA
  • Coil Type: Non-Latching
  • Must Operate Voltage: 8.4VDC
  • Must Release Voltage: 1.2VDC
  • Operate Time: 30ms
  • Release Time: 10ms
