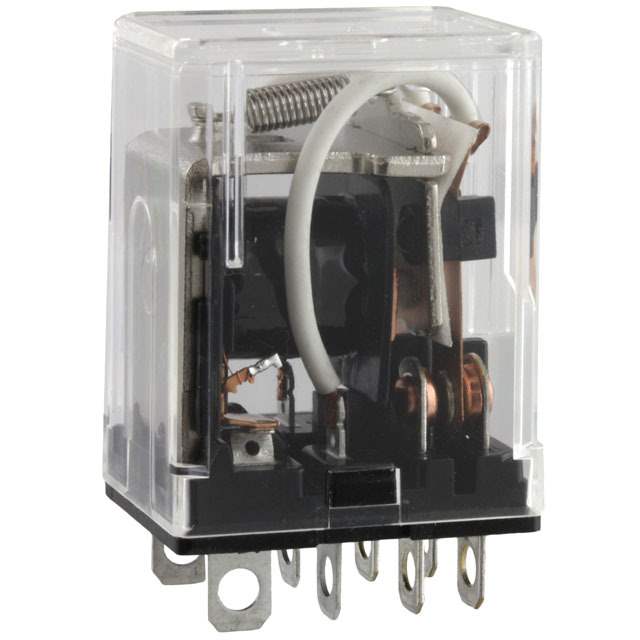

HL1-H-DC12V-F Real Image
Same model may have multiple batches, images only for reference.

HL1-H-DC12V-F

Part No HL1-H-DC12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 15A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 75mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 15A
Switching Voltage 125VAC - Nom
Turn On Voltage (Max) 9.6 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 25ms
Release Time 25ms
Mounting Socketable
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Coil Power 900 mW
Coil Resistance 160 Ohms
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 138313-HL1-H-DC12V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian HL1-H-DC12V-F CAD Model

Description

The Panasonic Electric Works 138313-HL1-H-DC12V-F is a general-purpose relay that is designed to provide reliable performance over an extended period. It has a plug-in, quick connect - 0.187 inches (4.7mm) termination style and a contact form of SPDT (1 Form C). The coil voltage is 12VDC, and the contact rating (current) is 15A. The switching voltage is 125VAC - Nom, and the turn on voltage (Max) is 9.6 VDC. The turn off voltage (Min) is 1.2 VDC, and the release time is 25ms. The coil power is 900 mW. This product is active and has a medium popularity.
