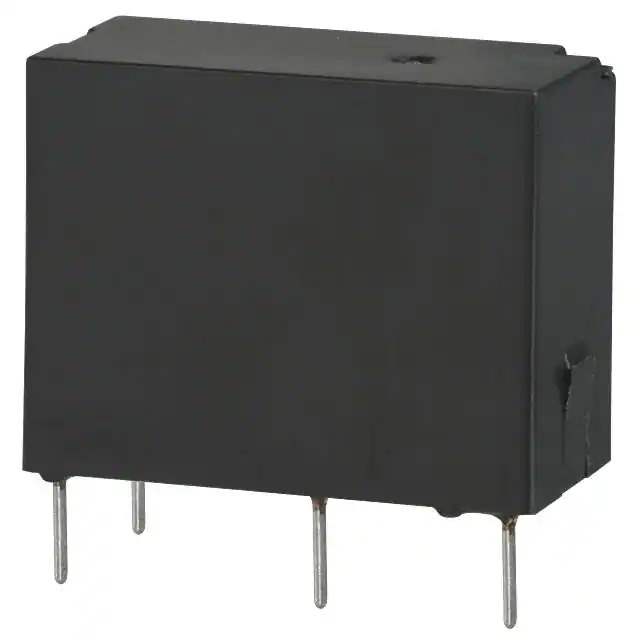

JQ1A-B-12V-F Real Image
Same model may have multiple batches, images only for reference.

JQ1A-B-12V-F

Part No JQ1A-B-12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JQ
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 110VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class B
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number JQ1A
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 876231-JQ1A-B-12V-F
Ultra Librarian 3D Model Ultra Librarian JQ1A-B-12V-F CAD Model

Description

The JQ series is a power relay designed for applications requiring a high current rating.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 5A
  • Switching Voltage: 250VAC, 110VDC
  • Coil Voltage: 12VDC
  • Coil Resistance: 720 Ohms
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 85°C
  • Standard Package: 100 pcs
  • Product Line: Panasonic JQ1A
  • Status: Obsolete
