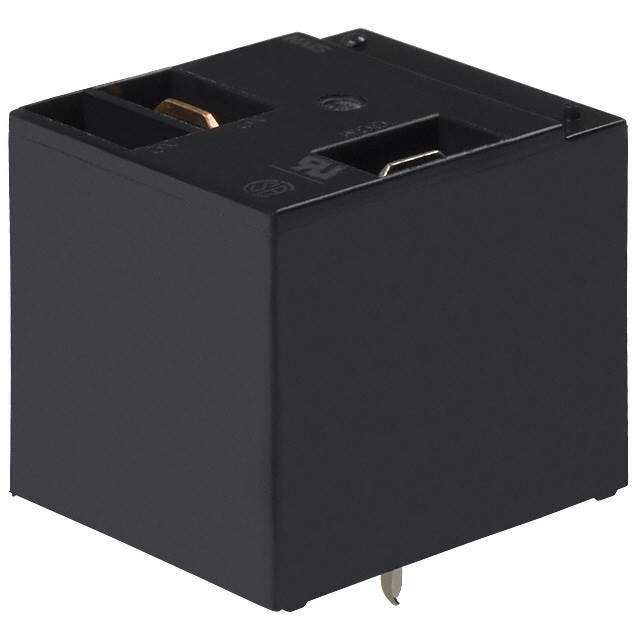

JTN1AS-TMP-F-DC5V Real Image
Same model may have multiple batches, images only for reference.

JTN1AS-TMP-F-DC5V

Part No JTN1AS-TMP-F-DC5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JT-N
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Max
Coil Current 160 mA
Coil Type Non Latching
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 31 Ohms
Base Product Number JTN1AS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names JTN1ASTMPFDC5V,255-1487,255-1487-NDR,Q816528,JTN1AS-TMP-F-DC5V-ND
Standard Package 50
Win Source Part Number 1162802-JTN1AS-TMP-F-DC5V
Ultra Librarian 3D Model Ultra Librarian JTN1AS-TMP-F-DC5V CAD Model

Description

The Panasonic Electric Works JTN1AS-TMP-F-DC5V is a general-purpose power relay with a contact form of SPST-NO (1 Form A).

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Contact Rating: 30A
  • Switching Voltage: 277VAC max
  • Coil Voltage: 5VDC
  • Coil Resistance: 31 ohms
  • Coil Current: 160mA
  • Temperature Range: -55°C to 85°C
  • Seal Rating: Fully Sealed
  • Mounting: Through-Hole
  • Status: Obsolete
  • Manufacturer: Panasonic Electric Works
