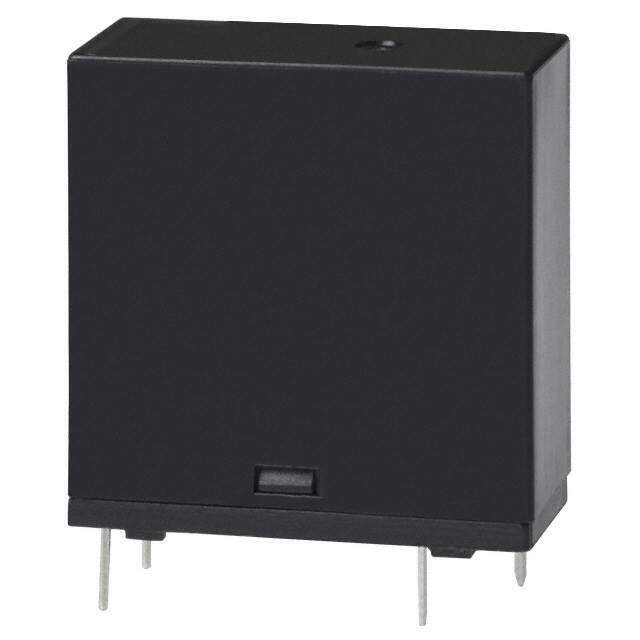

LK1AF-12V Real Image
Same model may have multiple batches, images only for reference.

LK1AF-12V

Part No LK1AF-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
LK1AF-12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Manufacturer Panasonic Electric Works
Packaging Bulk
Product Status Obsolete
Mounting Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 44.2 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 272 Ohms
Base Product Number LK1AF
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Other Part Number 255-1266,LK1AF12V
Standard Package 100
Win Source Part Number 1323757-LK1AF-12V
Ultra Librarian 3D Model Ultra Librarian LK1AF-12V CAD Model

Description

The LK1AF-12V by Panasonic Electric Works is a power relay with a contact form of SPST-NO (1 Form A).

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver tin oxide (AgSnO)
  • Switching Voltage: 277VAC and 30VDC max
  • Coil Voltage: 12VDC
  • Coil Resistance: 272 Ohms
  • Relay Type: General-purpose
  • Coil Type: Non-Latching
  • Operating Temperature: -40°C to 70°C
  • Mounting Style: Through-hole
  • Termination: PC pin
