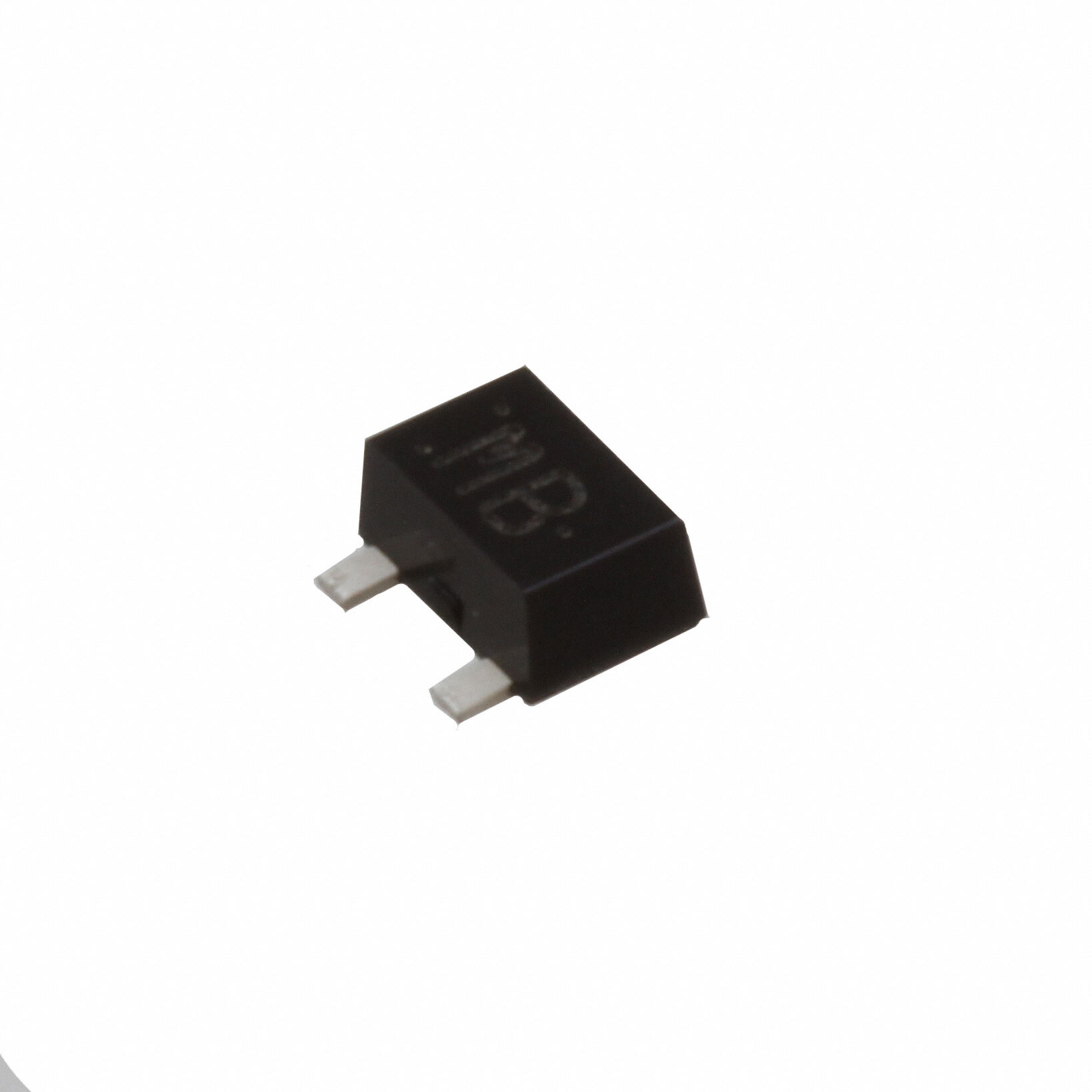

Same model may have multiple batches, images only for reference.
MA3J142A0L Panasonic
Same model may have multiple batches, images only for reference.

MA3J142A0L

Part No MA3J142A0L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description Diode Switching 80V 0.1A 3-Pin SMini3-F1 / DIODE GEN PURP 80V 100MA SMINI3
Datasheet
MA3J142A0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel package
Part Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 80V
Current - Average Rectified (Io) 100mA (DC)
Voltage - Forward (Vf) (Maximum) @ If 1.2V @ 100mA
Reverse Recovery Time (trr) 10ns
Current - Reverse Leakage @ Vr 100nA @ 75V
Capacitance @ Vr, F 15pF @ 0V, 1MHz
Mounting SMD
Package SC-85
Manufacturer Package SMini3-F1
Operating Temperature - Junction 150°C (Maximum)
Win Source Part Number 785161-MA3J142A0L
Popularity Medium
Supply and Demand Status Balance
Family Name MA3J142A
Introduction Date March 14, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MA3J142A0L CAD Model

Description

The Panasonic Electronic Components 785161-MA3J142A0L is an obsolete (EOL) electronic component manufactured by Panasonic Electronic Components.

  • Package: SC-85
  • Mounting: SMD
  • Diode Type: Standard
  • Average Rectified Current (Io): 100mA (DC)
  • Reverse Recovery Time (trr): 10ns
  • Capacitance: 15pF @ 0V, 1MHz
  • Maximum Operating Temperature: 150°C
  • Voltage Forward (Vf) (maximum): 1.2V @ 100mA
