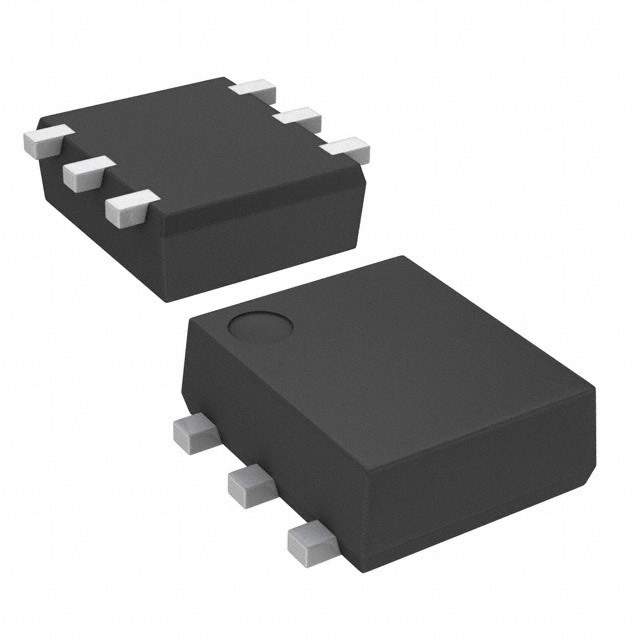

MTM862270LBF Real Image
Same model may have multiple batches, images only for reference.

MTM862270LBF

Part No MTM862270LBF
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 2.2A WSSMINI6
Datasheet
MTM862270LBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 2.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4V
Gate-Source Threshold Voltage 1.3V @ 1mA
Max Input Capacitance 280pF @ 10V
Maximum Gate-Source Voltage ±10V
Power Dissipation (Max) 540mW (Ta)
Maximum Rds On at Id,Vgs 105 mOhm @ 1A, 4V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package WSSMini6-F1
Dimension 6-SMD, Flat Leads
Win Source Part Number 024588-MTM862270LBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MTM862270LBF CAD Model

Description

The Panasonic Electronic Components MTM862270LBF is an N-channel MOSFET with a drain-source breakdown voltage of 20V and a continuous drain current of 2.2A @ 25°C.

  • Maximum Rds On: 105 mOhm @ 1A and 4V gate-source voltage
  • Temperature range: Up to 150°C
  • Package size: WSSMini6-F1 package size with 6-SMD, flat leads
  • Gate-Source Threshold Voltage: 1.3V @ 1mA
  • Maximum Input Capacitance: 280pF @ 10V
  • Supply and demand status: balanced
