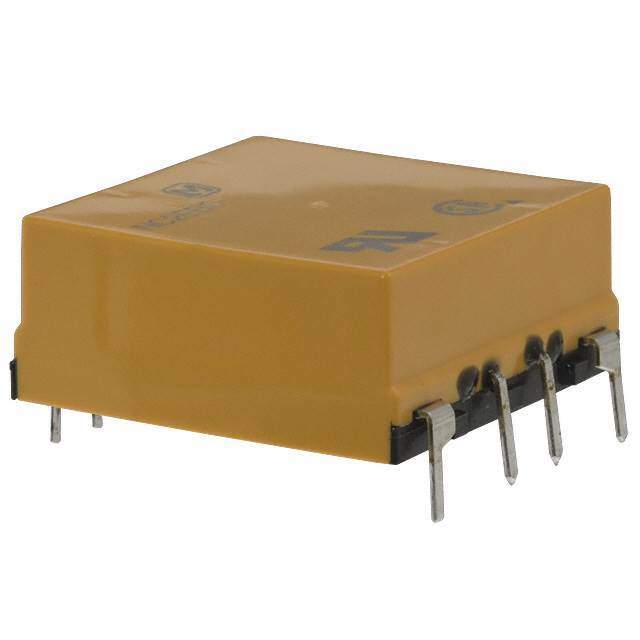

NC2EBD-JPL2-DC12V

Part No NC2EBD-JPL2-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 12V
Datasheet
NC2EBD-JPL2-DC12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Latching, Dual Coil
Coil Current 66.7mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 9.6 VDC
Operate Time 20ms
Release Time 10ms
Features Sealed - Amber
Mounting Through Hole
Termination Style PC Pin
Coil Power 800 mW
Coil Resistance 180 Ohms
Temperature Range - Operating -40°C to 55°C
Win Source Part Number 209049-NC2EBD-JPL2-DC12V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NC2EBD-JPL2-DC12V CAD Model

Description

The Panasonic Electric Works DPDT (2 Form C) General Purpose Latching Dual Coil Relay is an excellent option for industrial applications.

  • Coil Voltage: 12VDC
  • Coil Resistance: 180 Ohms
  • Switching Voltage: 250VAC maximum
  • Contact Rating: 5A
  • Turn-On Voltage: 9.6VDC maximum
  • Release Time: 10ms
  • Mounting Style: Through-hole
  • Termination Style: PC pin
  • Sealed: Yes
  • Color: Amber
  • Temperature Range: -40°C to 55°C
  • Status: Obsolete with limited supply and demand
