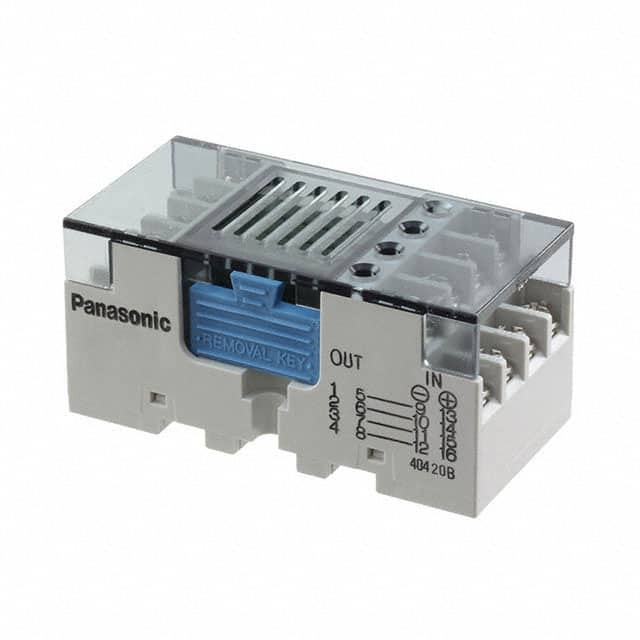

RT3S-24V
Same model may have multiple batches, images only for reference.

RT3S-24V

Part No RT3S-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 3A 24V / General Purpose Relay SPST-NO (1 Form A) x 4 24VDC Coil DIN Rail
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series RT-3
Package Bulk
Product Status Obsolete
Mounting Type DIN Rail
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A) x 4
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 7.5 mA
Coil Type Non Latching
Features Lighted Indicator, Socket Included
Termination Style Screw Terminal
Must Operate Voltage 16.8 VDC
Must Release Voltage 1.2 VDC
Temperature Range - Operating -20°C ~ 55°C
Relay Type General Purpose
Coil Resistance 3.2 kOhms
Base Product Number RT3S
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 932481-RT3S-24V
Ultra Librarian 3D Model Ultra Librarian RT3S-24V CAD Model

Description

The 932481-RT3S-24V is a power relay from Panasonic's RT-3 series.

  • Series: RT-3
  • Type: Power Relay
  • Contact Form: SPST-NO
  • Contact Rating: 3 A
  • Coil Voltage: 24VDC
  • Coil Resistance: 3.2 kOhms
  • Termination Style: Screw Terminal
  • Features: Lighted Indicator, Socket
  • Mounting: DIN Rail
  • Temperature Range: -20°C to 55°C
