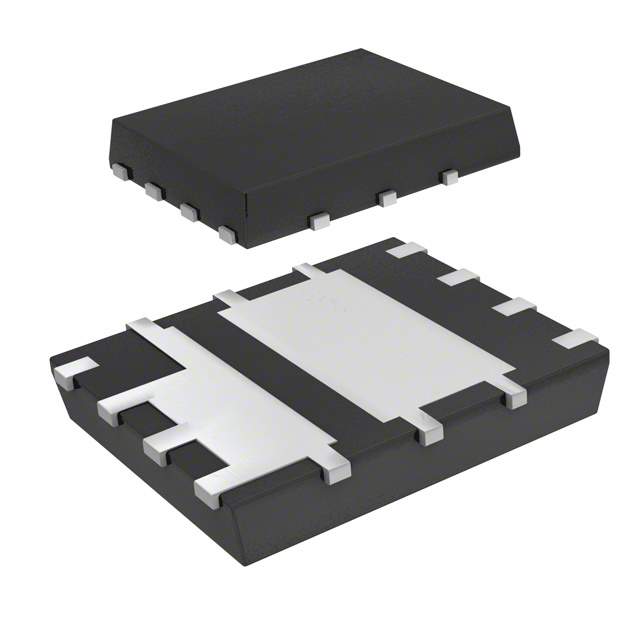

SC8673040L Real Image
Same model may have multiple batches, images only for reference.

SC8673040L

Part No SC8673040L
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Arrays
Mfr Panasonic Electronic Components
Package Tape & Reel
FET Type 2 N-Channel (Dual) Asymmetrical
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 16A, 46A
Rds On (Max) @ Id, Vgs 10mOhm @ 8A, 10V
Vgs(th) (Max) @ Id 3V @ 5.85mA
Gate Charge (Qg) (Max) @ Vgs 6.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds 1092pF @ 10V
Power - Max 1.7W, 2.5W
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case 8-PowerSMD, Flat Leads
Supplier Device Package HSO8-F3-B
Other Names P16273CT,P16273TR,P16273DKR
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1278570-SC8673040L
Ultra Librarian 3D Model Ultra Librarian SC8673040L CAD Model

Description

The Panasonic Electronic Components SC8673040L is a dual N-channel asymmetrical MOSFET array.

  • Gate Type: Logic level gate
  • Drain to Source Voltage: 30V
  • Continuous Drain Current @ 25°C: 16A and 46A
  • Rds On (Max) @ Id, Vgs: 10mOhm @ 8A, 10V
  • Package: 8-PowerSMD, Flat Leads
  • Supplier Device Package: HSO8-F3-B
  • Power: 7W, 2.5W
  • Temperature Range: 150°C (TJ)
