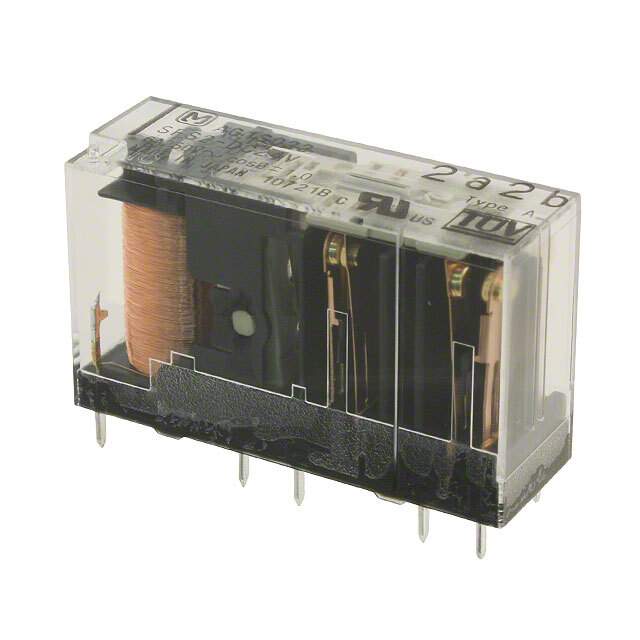

SFS3-DC24V Real Image
Same model may have multiple batches, images only for reference.

SFS3-DC24V

Part No SFS3-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY SAFETY 4PST 6A 24V /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Safety Relays
Mfr Panasonic Electric Works
Series SFS
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form 4PST-3NO/1NC (3 Form A, 1 Form B)
Contact Rating (Current) 6 A
Switching Voltage 250VAC, 30VDC - Max
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Current 15 mA
Coil Power 360mW
Coil Resistance 1.6 kOhms
Base Product Number SFS3-D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 1110-2505,SFS3-DC24V-ND
Standard Package 20
Win Source Part Number 1059825-SFS3-DC24V
Ultra Librarian 3D Model Ultra Librarian SFS3-DC24V CAD Model

Description

The SFS series safety relay is a reliable and safe option for your electrical needs.

  • Contact Form: 4PST-3NO/1NC (3 Form A, 1 Form B)
  • Contact Rating: 6 A
  • Contact Material: Silver tin oxide (AgSnO)
  • Mounting Type: Through hole
  • Package: Bulk
  • Coil Voltage: 24VDC
  • Coil Current: 15 mA
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
