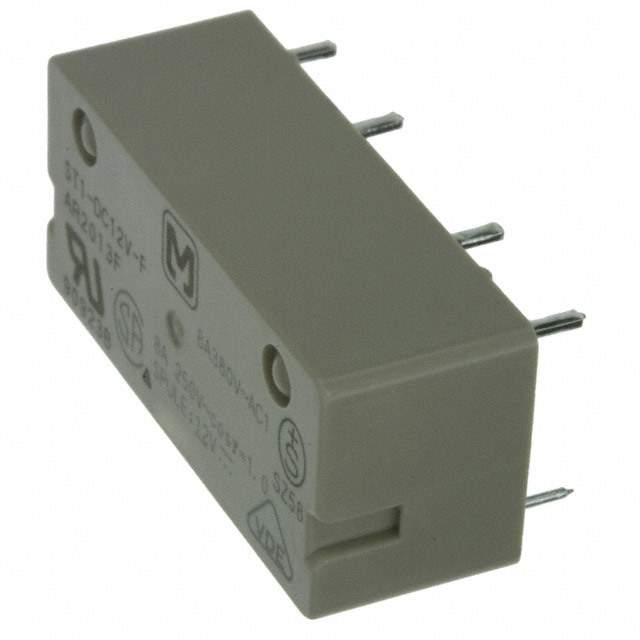

The Panasonic Electric Works ST1-DC12V-F relay is a DPST-NO/NC (1 Form A and B) general purpose relay with a coil voltage of 12VDC and a contact rating of 8A.

• Contact Form: DPST-NO/NC (1 Form A and B)
• Coil Voltage: 12VDC
• Contact Rating: 8A
• Features: Sealed, fully-featured
• Mounting Style: Through-hole
• Coil Resistance: 600 Ohms
• Operate Time: 15ms
• Release Time: 10ms
• Switching Voltage: 380VAC, 250VDC - Max
• Turn-On Voltage (Max): 9.6 VDC
• Turn-Off Voltage (Min): 1.2 VDC
• Relay Type: Non-latching
• Coil Power: 240 mW
• Temperature Range: -40°C to 60°C
• Popularity: High
• Supply and Demand Status: Limited
