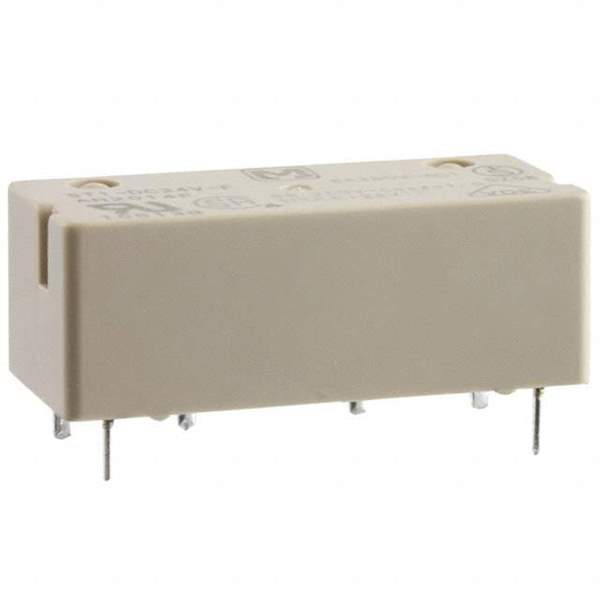

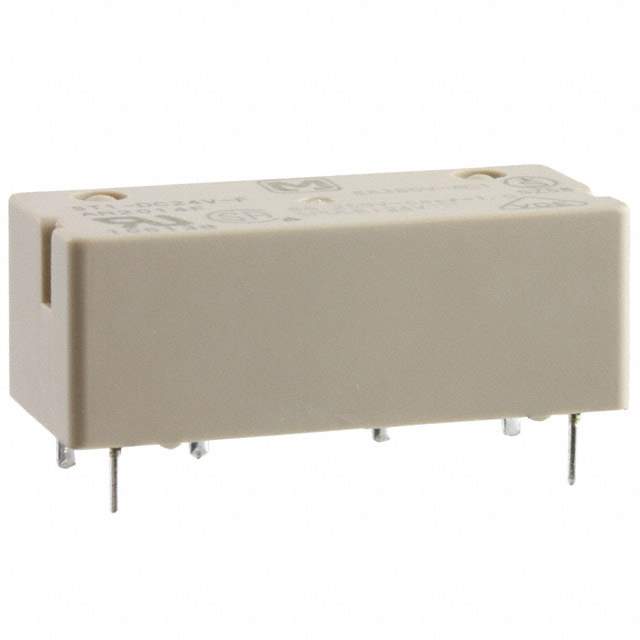

ST1-DC24V-F Real Image
Same model may have multiple batches, images only for reference.

ST1-DC24V-F

Part No ST1-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 10mA
Coil Voltage 24VDC
Contact Form DPST-NO/NC (1 Form A and B)
Contact Rating (Current) 8A
Switching Voltage 380VAC, 250VDC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 15ms
Release Time 10ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 240 mW
Coil Resistance 2.4 kOhms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 047300-ST1-DC24V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian ST1-DC24V-F CAD Model

Description

The Panasonic Electric Works 047300-ST1-DC24V-F is a general purpose relay that is designed for use in a variety of electronic devices.

  • Features: Sealed design
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Win Source Part Number: 047300-ST1-DC24V-F
  • Coil Voltage: 24VDC
  • Contact Rating: 8A
