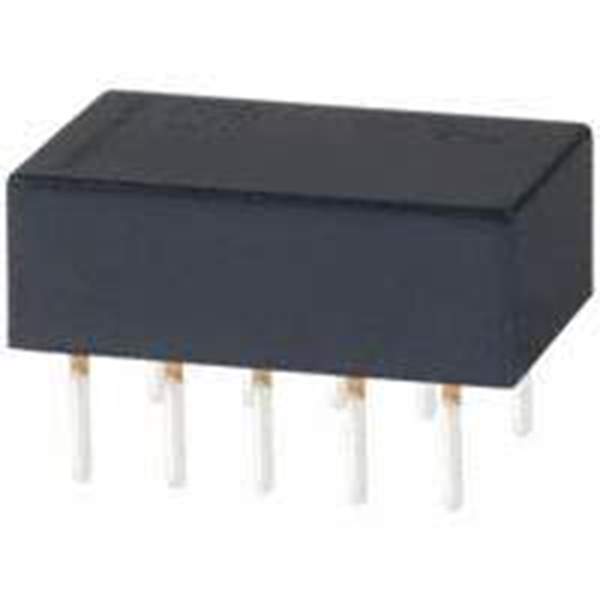

TQ2-9V Real Image
Same model may have multiple batches, images only for reference.

TQ2-9V

Part No TQ2-9V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 9V
Datasheet
TQ2-9V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 15.5mA
Coil Voltage 9VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Turn On Voltage (Max) 6.75 VDC
Turn Off Voltage (Min) 0.9 VDC
Operate Time 3ms
Release Time 3ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 140 mW
Coil Resistance 579 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 052922-TQ2-9V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian TQ2-9V CAD Model

Description

The Panasonic Electric Works 052922-TQ2-9V is a DPDT (2 Form C) telecom relay with a coil voltage of 9VDC and a coil resistance of 579 Ohms.

  • Coil Voltage: 9VDC
  • Coil Resistance: 579 Ohms
  • Contact Rating: 1A
  • Switching Voltage: 125VAC and 110VDC maximum
  • Turn-On Voltage: 6.75 VDC
  • Turn-Off Voltage: 0.9 VDC
  • Release Time: 3ms
  • Operate Time: 3ms
  • Relay Type: Non-latching
  • Coil Power: 140 mW
  • Operating Temperature: -40°C to 70°C
  • Packaging: Tube/rail
  • Popularity: Medium
  • Supply and Demand: Limited
  • Pieces per Package: 50
