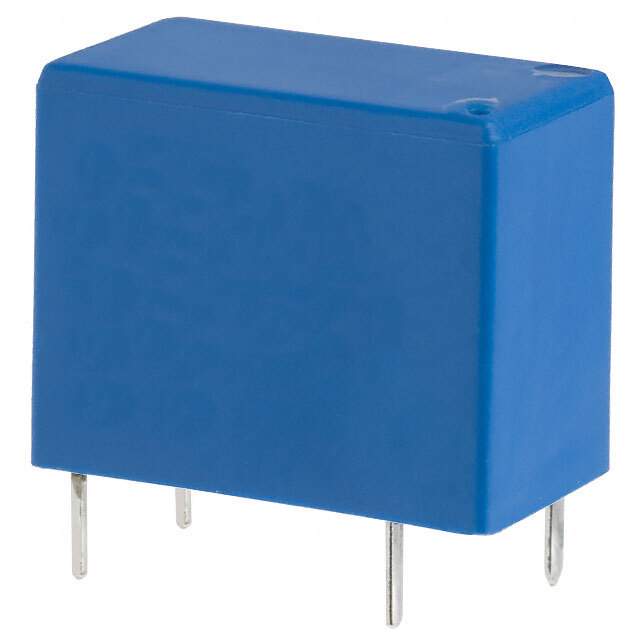

1461402-6 Real Image
Same model may have multiple batches, images only for reference.

1461402-6

Part No 1461402-6
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description General Purpose Relay, G5Le Series, Power, Non Latching, Spst-No, 12 Vdc, 10 A Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 37.5 mA
Coil Power 450 mW
Coil Resistance 320 Ω
Coil Type Non-Latching
Coil Voltage (DC) 12 V
Contact Current Rating 10 A
Contact Material Silver
Contact Voltage Rating (DC) 30 V
Depth 10.2 mm
ELV Non-Compliant
Height 14.7 mm
Lead Free Yes
Length 18.2 mm
Max Current Rating 10 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 265 V
Max Voltage Rating (DC) 30 V
Min Operating Temperature -30 °C
Mount Through Hole
Number of Pins 4
Operate Time 10 ms
Packaging Bulk
Radiation Hardening No
REACH SVHC Unknown
Relay Type General Purpose
Release Time 4 ms
RoHS Compliant
Termination PC Pin, PCB
Throw Configuration SPST
Weight 9 g
Width 10.2 mm
Win Source Part Number 1034430-1461402-6
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 1461402-6 CAD Model

Description

This electronic component is a general-purpose relay designed for use in various electronic devices.

  • Manufacturer: TE Connectivity
  • Coil Voltage: 12V DC
  • Latching Type: Non-Latching
  • Contact Current Rating: 10A
  • Package: Bulk
  • Mounting: Through Hole
  • RoHS Compliant: Yes
  • Maximum Voltage Rating: 30V DC
