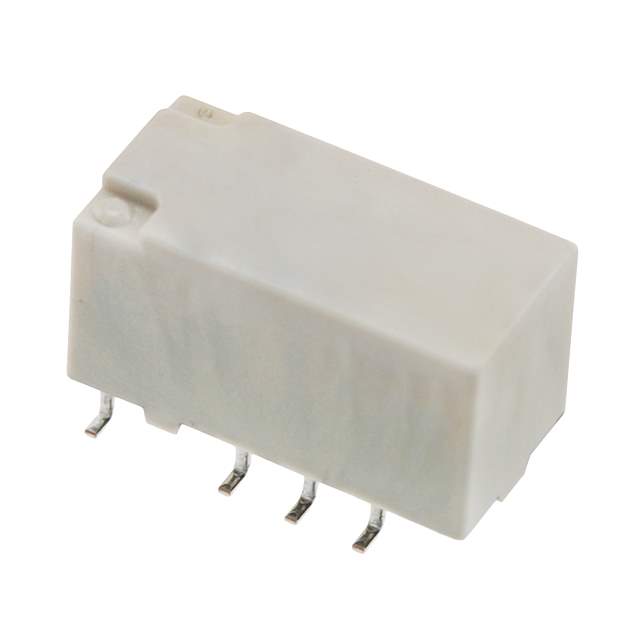

TX2SA-12V-Z Real Image
Same model may have multiple batches, images only for reference.

TX2SA-12V-Z

Part No TX2SA-12V-Z
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 12V
Datasheet
TX2SA-12V-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 11.7mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 220VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 4ms
Release Time 4ms
Features Sealed - Fully
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 1.03 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 083631-TX2SA-12V-Z
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TX2SA-12V-Z CAD Model

Description

The Panasonic Electric Works 083631-TX2SA-12V-Z is a DPDT (2 Form C) telecom relay with a coil voltage of 12VDC. It has a switching voltage of 220VDC - Max and a contact rating (current) of 2A.

  • Coil Voltage: 12VDC
  • Switching Voltage: 220VDC - Max
  • Contact Rating (Current): 2A
  • Sealed: Fully
  • Termination Style: Gull Wing
  • Mounting: SMD (SMT)
  • Coil Resistance: 1.03 kOhms
  • Coil Current: 11.7mA
  • Operate Time: 4ms
  • Release Time: 4ms
  • Relay Type: Non-Latching
  • Category: Relays
  • Temperature Range: -40°C to 85°C
  • Popularity: High
